punk75

by dsanchezseco · ★ 44 · checked today ·

75 keys unibody

MX soldered ATmega32A QMK

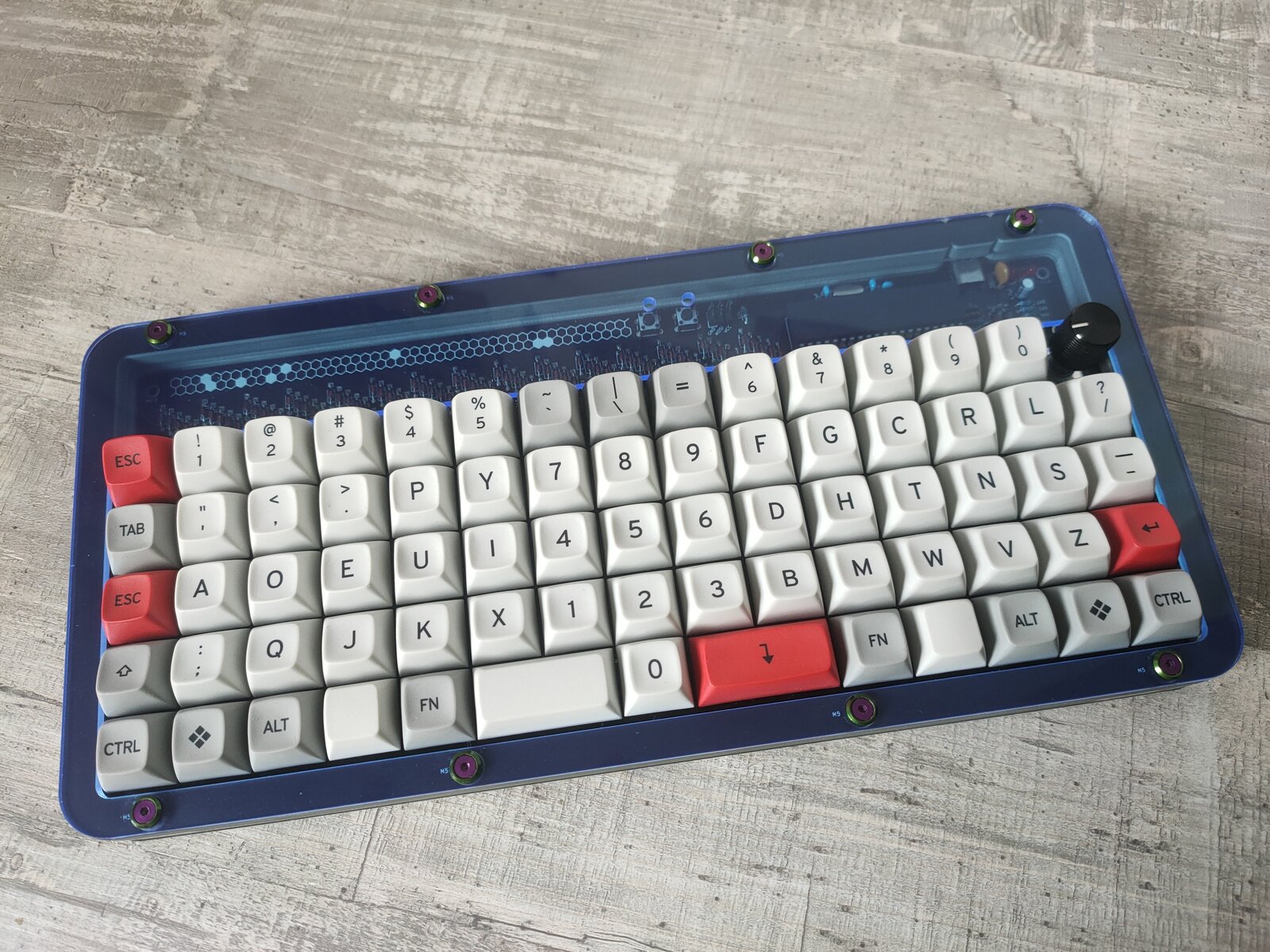

Photo of an assembled punk75 — An assembled punk75, from the project's own README.

What fits this board → Compare with another board →

Record 78% complete · 14 of 18 fields

✓ Layout
✓ Switch footprint
✓ Build method
✓ Controller
✓ Body
✓ Firmware
✓ Hardware license
✓ Firmware license
✓ Documentation license
✗ Key pitch
✓ Soldering
✓ Soldered MCU
✓ Firmware targets
✗ Summary
✓ Key wiring
✓ Hotswap
✗ Splay
✗ Stagger

No summary recorded.

Layouts

75 keys

Spec

Shape

Body: unibody
Splay: — not recorded —
Stagger: — not recorded —
Key spacing: — not recorded —

Switches

Switch footprint: MX
Hotswap: Mill-Max, or solder the switches in

Electronics

Controller: soldered ATmega32A
Connectivity: Wired — the soldered ATmega32A has no radio
USB port: USB-C
Firmware: QMK (punk75)
Firmware targets: ATmega32A
Key wiring: 5×15 matrix, column-to-row diodes
Room for: encoder
Power switch: no
Exposed components: yes

Building it

Build method: PCB
Soldering: SMD, fine-pitch (USB)
SMD required: yes

Licensing

Hardware: GPL-3.0-or-later
Firmware: GPL-3.0-or-later
Documentation: GPL-3.0-or-later

Sources

https://github.com/dsanchezseco/punk75
