Pill60
64 keys unibody
MX BluePill socket QMK
Pill60.kicad_pcb.

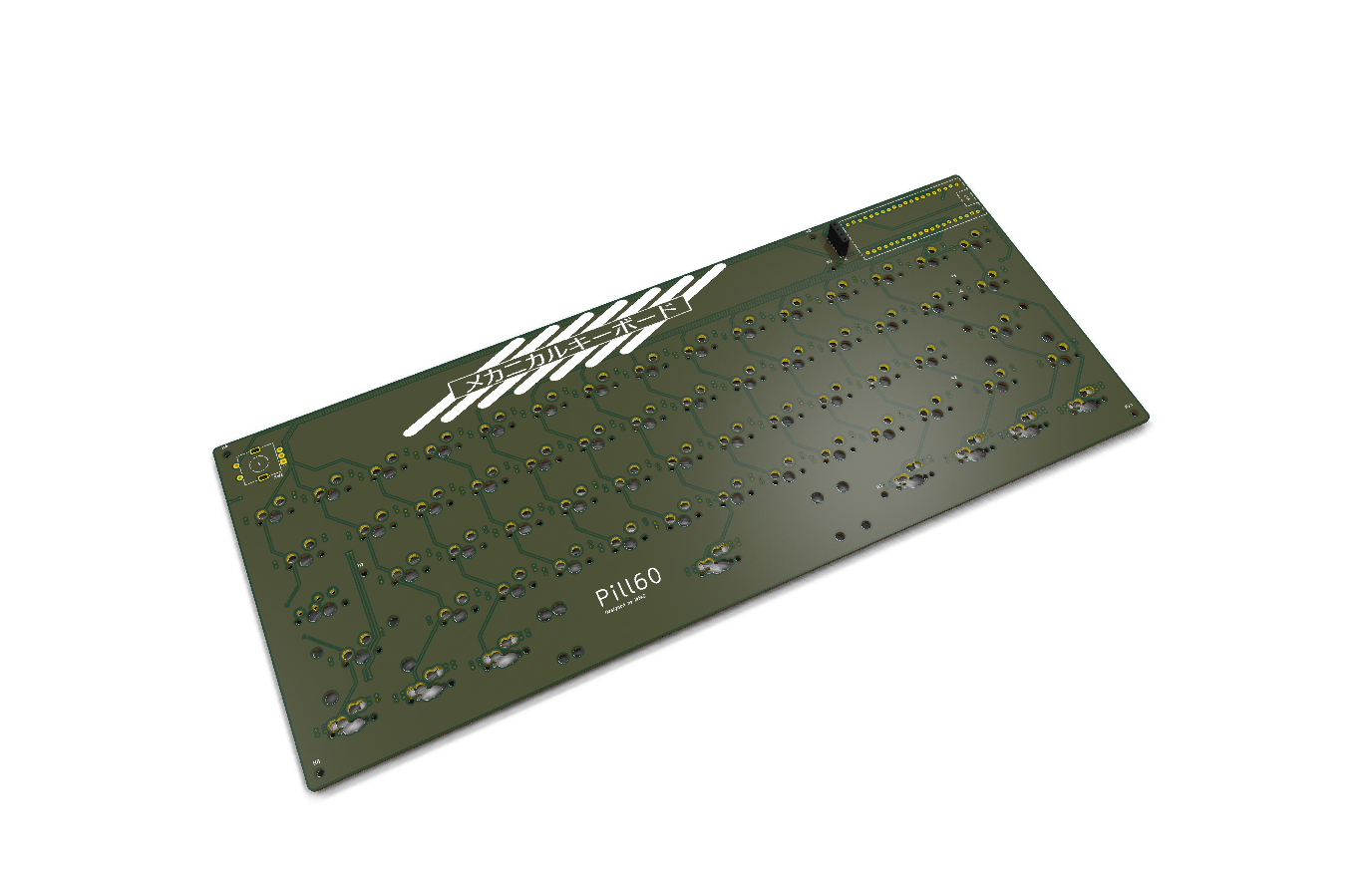

No switches or keycaps: this is the board as manufactured.
What fits this board → Compare with another board →
Record 88% complete · 15 of 17 fields
- ✓ Layout
- ✓ Switch footprint
- ✓ Build method
- ✓ Controller
- ✓ Body
- ✓ Firmware
- ✓ Hardware license
- ✓ Firmware license
- ✓ Documentation license
- ✓ Key pitch
- ✓ Soldering
- ✓ Firmware targets
- ✓ Summary
- ✓ Key wiring
- ✓ Hotswap
- ✗ Splay
- ✗ Stagger
This is Pill 60, it offers various bottom row layout, a stepped caps, an OLED screen, and two rotary encoder, and uses Kailh Hotswap Socket, and underglow RGB LED.
Layouts
- 64 keys
Spec
Shape
- Body
- unibody
- Splay
- — not recorded —
- Stagger
- — not recorded —
- Key spacing
- MX spacing · 19.05 × 19.05 mm
Switches
- Switch footprint
- MX
- Hotswap
- No, the switches solder in
Electronics
- Controller
- BluePill socket
- Connectivity
- No wireless controller we know of fits this socket
- USB port
- — not recorded —
- Firmware
- QMK (handwired/pill60/blackpill_f401), QMK (handwired/pill60/blackpill_f411), QMK (handwired/pill60/bluepill)
- Firmware targets
- STM32F103, STM32F401, STM32F411
- Key wiring
- 5×14 matrix, column-to-row diodes
- Room for
- encoder
- Power switch
- no
- Exposed components
- no
Building it
- Build method
- PCB
- Soldering
- SMD, hand-solderable (LED, diode)
- SMD required
- yes
Licensing
- Hardware
- all rights reserved — no license stated
- Firmware
- all rights reserved — no license stated
- Documentation
- all rights reserved — no license stated
