opendeck

by cmdremily · ★ 1 · checked today ·

32 keys unibody

MX soldered ATmega32U4 QMK

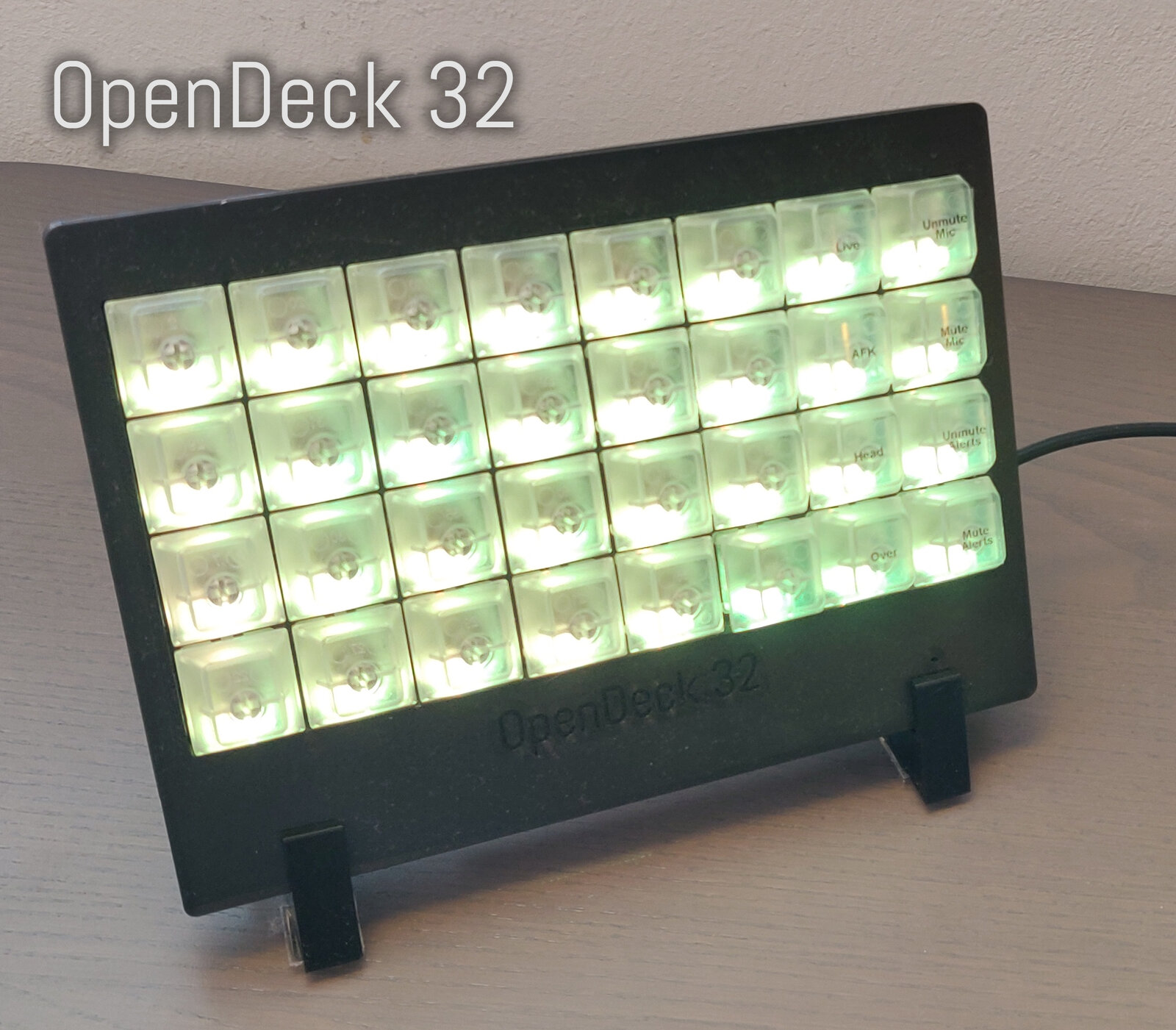

Photo of an assembled opendeck — An assembled opendeck, from the project's own README.

What fits this board → Compare with another board →

Record 100% complete · 18 of 18 fields

✓ Layout
✓ Switch footprint
✓ Build method
✓ Controller
✓ Body
✓ Firmware
✓ Hardware license
✓ Firmware license
✓ Documentation license
✓ Key pitch
✓ Soldering
✓ Soldered MCU
✓ Firmware targets
✓ Summary
✓ Key wiring
✓ Hotswap
✓ Splay
✓ Stagger

An open hardware/source 32-key (4x8) macro keypad based on QMK firmware.

From the project’s README · https://github.com/cmdremily/opendeck

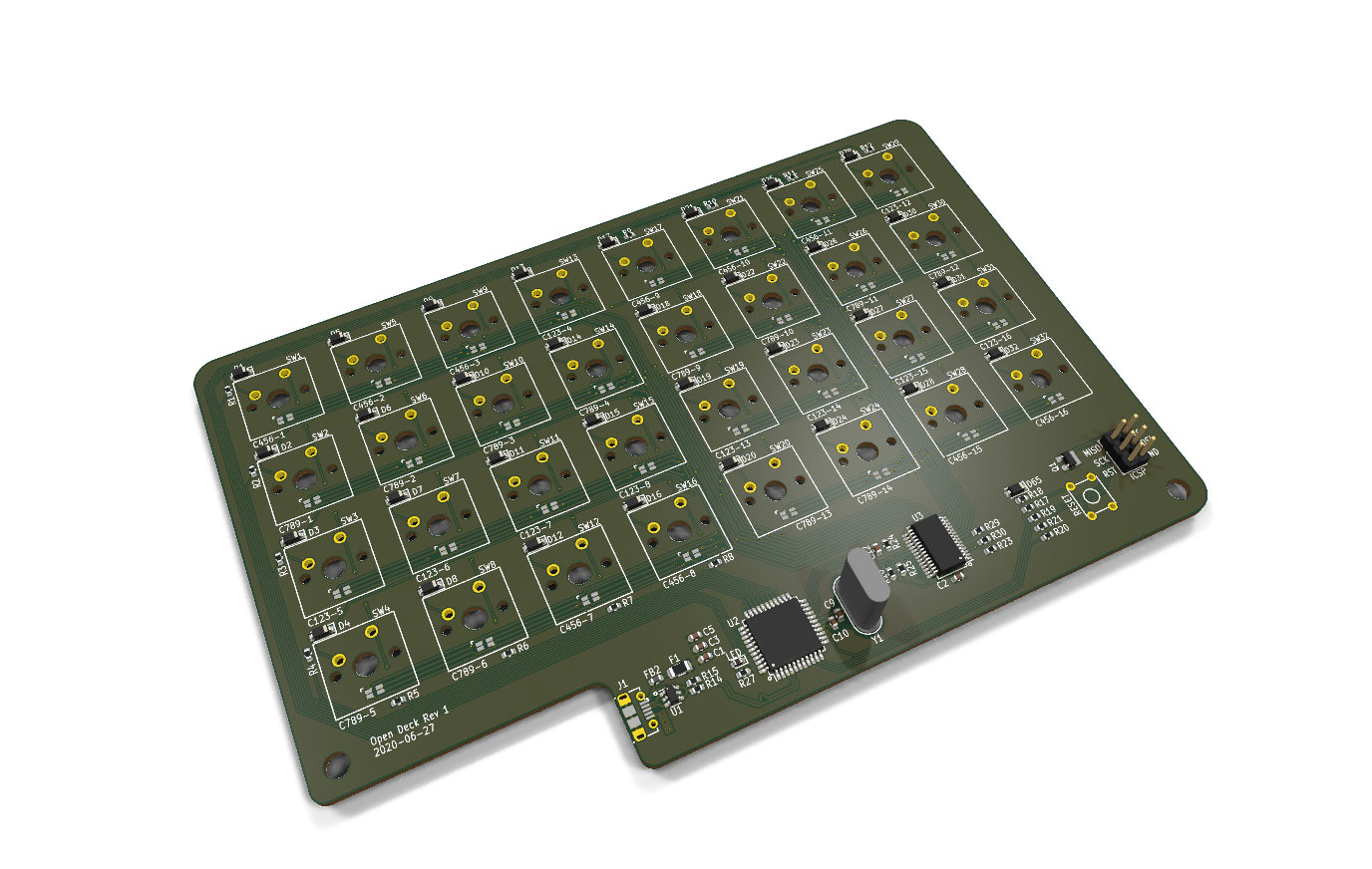

Layouts

32 keys

Spec

Shape

Body: unibody
Splay: no
Stagger: ortholinear
Key spacing: MX spacing · 19.05 × 19.05 mm

Switches

Switch footprint: MX
Hotswap: Mill-Max, or solder the switches in

Electronics

Controller: soldered ATmega32U4
Connectivity: Wired — the soldered ATmega32U4 has no radio
USB port: micro-USB
Firmware: QMK (opendeck/32/rev1)
Firmware targets: ATmega32U4
Key wiring: 4×8 matrix, column-to-row diodes
Room for: — not recorded —
Power switch: no
Exposed components: no

Building it

Build method: PCB
Soldering: SMD, fine-pitch (IC)
SMD required: yes

Licensing

Hardware: GPL-3.0-or-later
Firmware: GPL-3.0-or-later
Documentation: GPL-3.0-or-later

Sources

https://github.com/cmdremily/opendeck
