Neopad
6 keys unibody
MX Pro Micro socket QMK
Neopad.kicad_pcb.

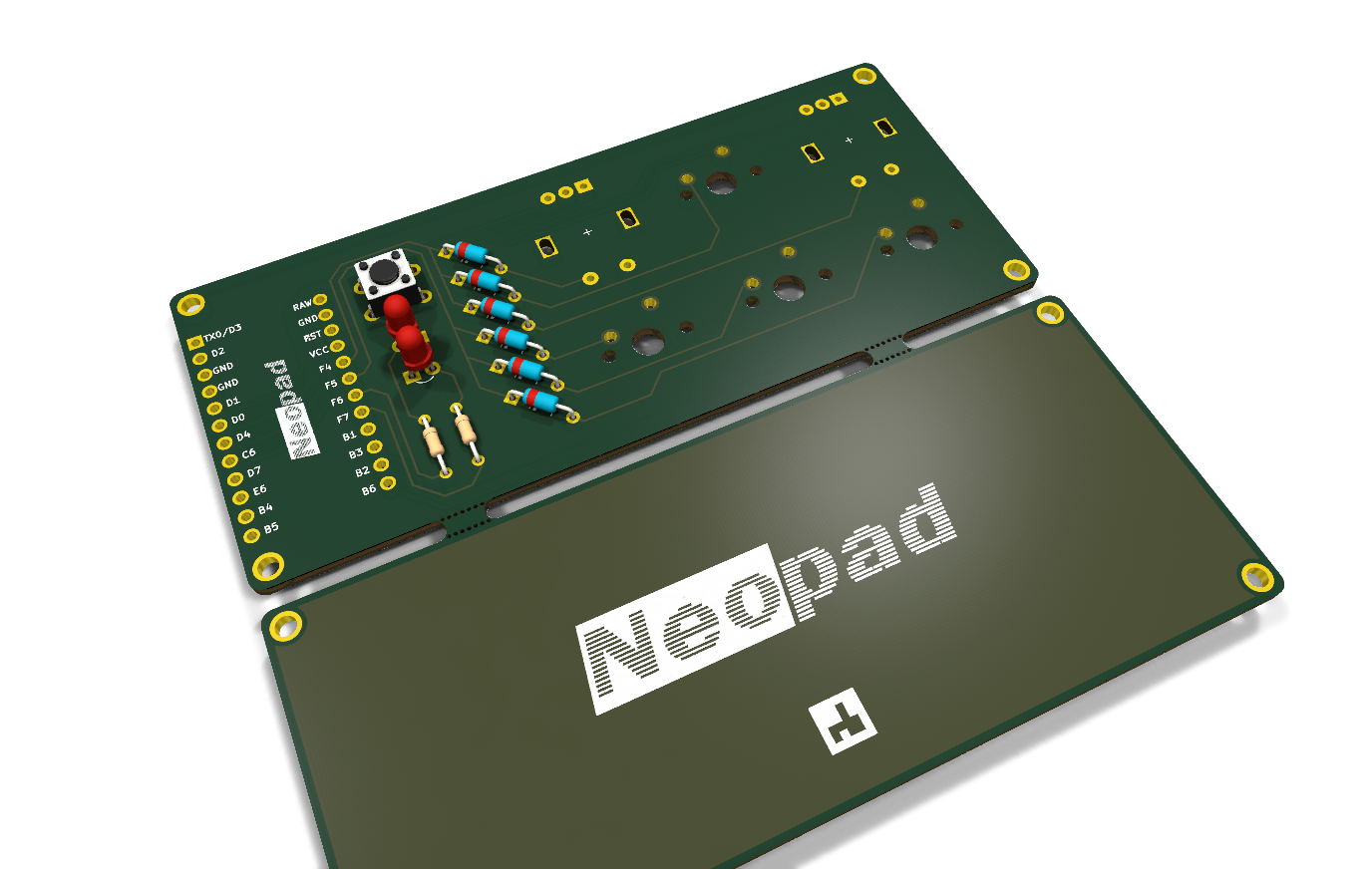

No switches or keycaps: this is the board as manufactured.
What fits this board → Compare with another board →
Record 82% complete · 14 of 17 fields
- ✓ Layout
- ✓ Switch footprint
- ✓ Build method
- ✓ Controller
- ✓ Body
- ✓ Firmware
- ✓ Hardware license
- ✓ Firmware license
- ✓ Documentation license
- ✗ Key pitch
- ✓ Soldering
- ✓ Firmware targets
- ✓ Summary
- ✓ Key wiring
- ✓ Hotswap
- ✗ Splay
- ✗ Stagger
Neopad is a little macropad with four switches and two rotary encoders, made by through hole components only. It's designed to use QMK firmware.
Layouts
- 6 keys
Spec
Shape
- Body
- unibody
- Splay
- — not recorded —
- Stagger
- — not recorded —
- Key spacing
- — not recorded —
Switches
- Switch footprint
- MX
- Hotswap
- Mill-Max, or solder the switches in
Electronics
- Controller
- Pro Micro socket
- Connectivity
- Wireless with a nice!nano v2 — needs a ZMK config
- USB port
- USB-C or micro-USB, depends on the dev board
- Firmware
- QMK (ivndbt/neopad/rev1)
- Firmware targets
- ATmega32U4
- Key wiring
- 2×3 matrix, column-to-row diodes
- Room for
- encoder
- Power switch
- no
- Exposed components
- — not recorded —
Building it
- Build method
- PCB
- Soldering
- through-hole (LED, diode, rotary encoder, other)
- SMD required
- no
Licensing
- Hardware
- GPL-2.0-only
- Firmware
- GPL-2.0-only
- Documentation
- GPL-2.0-only
