nack

by farfalleflickan · ★ 11 · checked today ·

52 keys unibody

MX soldered STM32F303 QMK

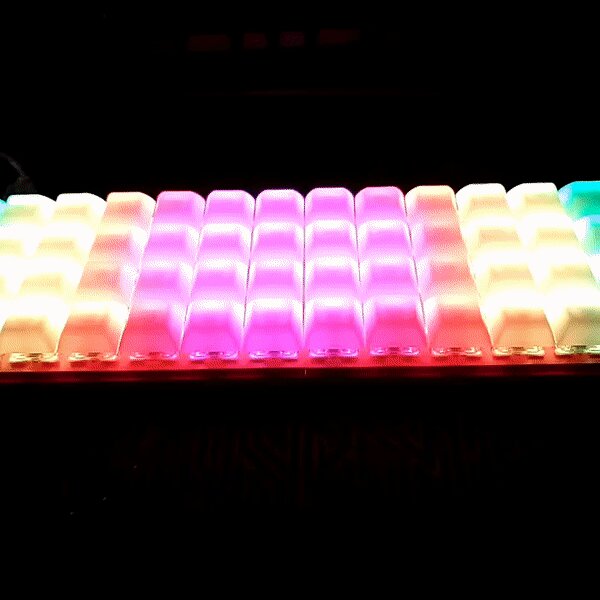

Photo of an assembled nack — An assembled nack, from the project's own README.

What fits this board → Compare with another board →

Record 94% complete · 17 of 18 fields

✓ Layout
✓ Switch footprint
✓ Build method
✓ Controller
✓ Body
✓ Firmware
✓ Hardware license
✓ Firmware license
✓ Documentation license
✓ Key pitch
✓ Soldering
✓ Soldered MCU
✓ Firmware targets
✗ Summary
✓ Key wiring
✓ Hotswap
✓ Splay
✓ Stagger

No summary recorded.

Layouts

52 keys

Spec

Shape

Body: unibody
Splay: no
Stagger: ortholinear
Key spacing: MX spacing · 19.05 × 19.05 mm

Switches

Switch footprint: MX
Hotswap: Kailh socket, Gateron socket, Mill-Max, or solder the switches in

Electronics

Controller: soldered STM32F303
Connectivity: Wired — the soldered STM32F303 has no radio
USB port: USB-C
Firmware: QMK (nack)
Firmware targets: STM32F303
Key wiring: 4×13 matrix, row-to-column diodes
Room for: — not recorded —
Power switch: no
Exposed components: no

Building it

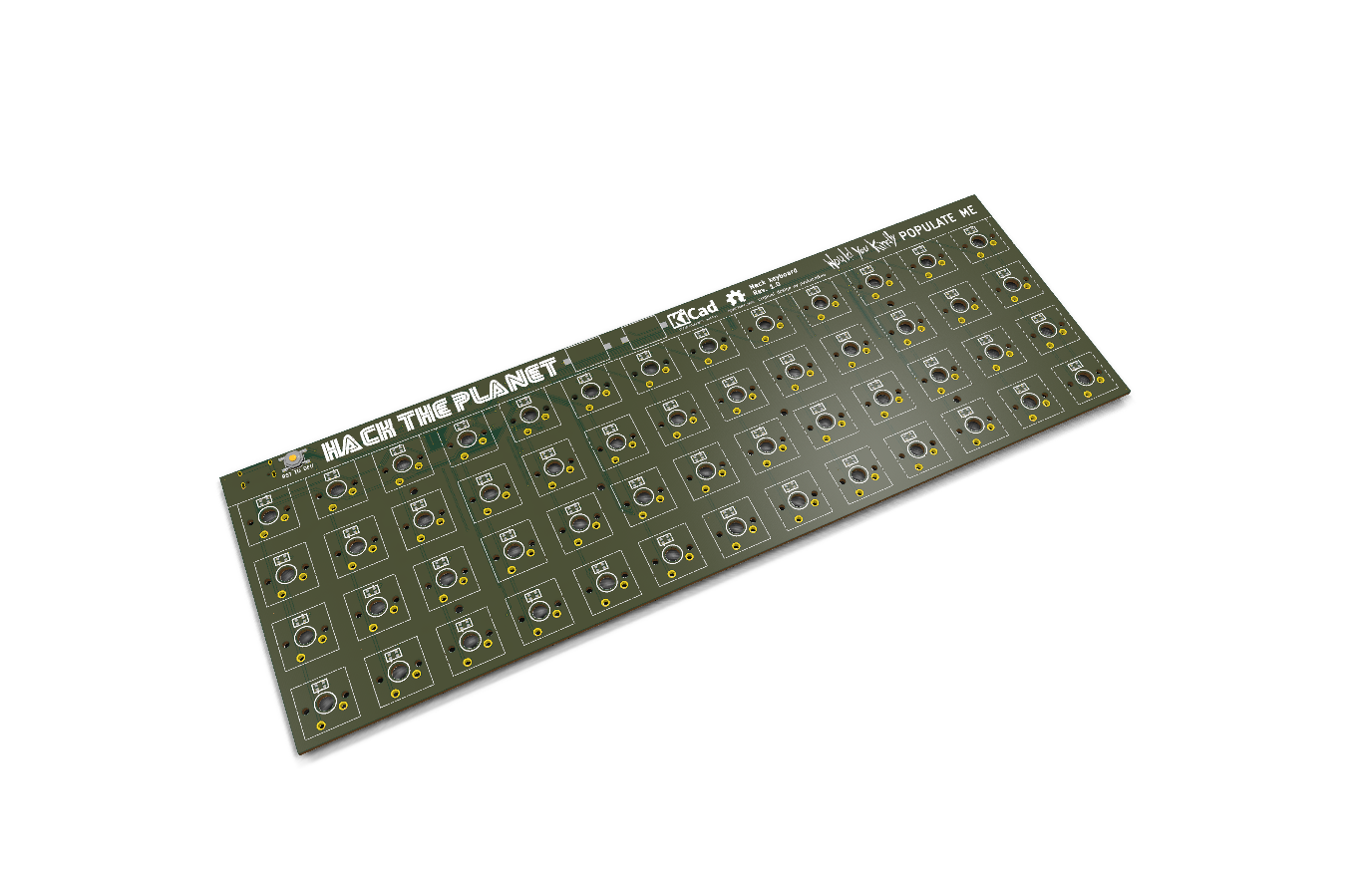

Build method: PCB
Soldering: SMD, fine-pitch (USB, LED, passive)
SMD required: yes

Licensing

Hardware: AGPL-3.0
Firmware: AGPL-3.0
Documentation: AGPL-3.0

Sources

https://github.com/farfalleflickan/nack
