mx 5160
91 / 90 / 89 / 88 / 87 keys unibody
MX soldered ATmega32U4 QMK
mx-5160.kicad_pcb.

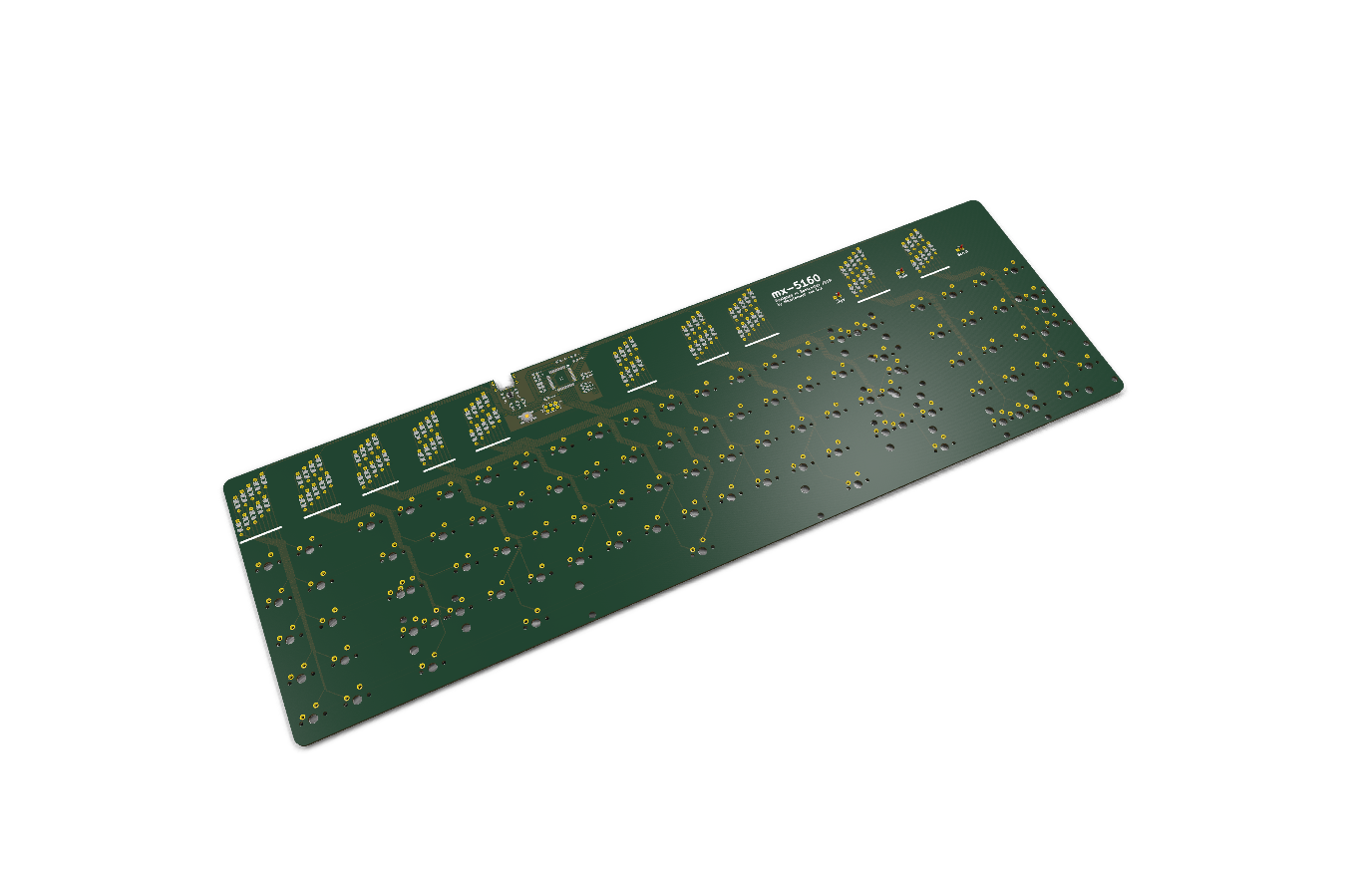

No switches or keycaps: this is the board as manufactured.
What fits this board → Compare with another board →
Record 89% complete · 16 of 18 fields
- ✓ Layout
- ✓ Switch footprint
- ✓ Build method
- ✓ Controller
- ✓ Body
- ✓ Firmware
- ✓ Hardware license
- ✓ Firmware license
- ✓ Documentation license
- ✓ Key pitch
- ✓ Soldering
- ✓ Soldered MCU
- ✓ Firmware targets
- ✓ Summary
- ✓ Key wiring
- ✓ Hotswap
- ✗ Splay
- ✗ Stagger
PCB and plate files for retrofitting MX type switches in a Chicony 5160c
Layouts
- 91 keys
- 90 keys
- 89 keys
- 88 keys
- 87 keys
Spec
Shape
- Body
- unibody
- Splay
- — not recorded —
- Stagger
- — not recorded —
- Key spacing
- MX spacing · 19.05 × 19.05 mm
Switches
- Switch footprint
- MX
- Hotswap
- Mill-Max, or solder the switches in
Electronics
- Controller
- soldered ATmega32U4
- Connectivity
- Wired — the soldered ATmega32U4 has no radio
- USB port
- USB-C
- Firmware
- QMK (evyd13/mx5160)
- Firmware targets
- ATmega32U4
- Key wiring
- 10×10 matrix, row-to-column diodes
- Room for
- — not recorded —
- Power switch
- no
- Exposed components
- yes
Building it
- Build method
- PCB
- Soldering
- SMD, fine-pitch (USB)
- SMD required
- yes
Licensing
- Hardware
- Apache-2.0
- Firmware
- Apache-2.0
- Documentation
- Apache-2.0
