minim

by matthewdias · ★ 13 · checked today ·

46 keys unibody

MX soldered ATmega32U4 QMK

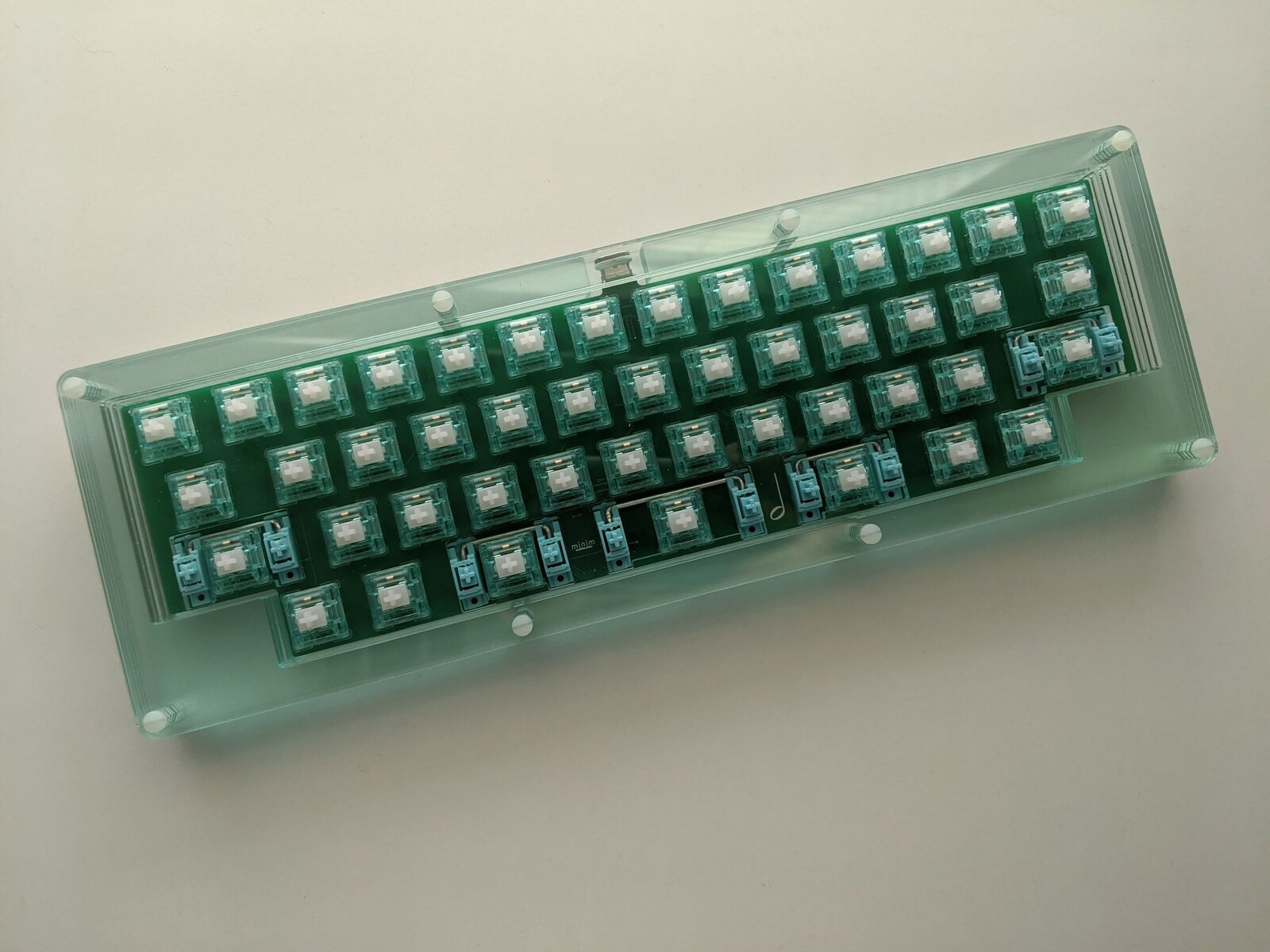

Photo of an assembled minim — An assembled minim, from the project's own README.

What fits this board → Compare with another board →

Record 100% complete · 18 of 18 fields

✓ Layout
✓ Switch footprint
✓ Build method
✓ Controller
✓ Body
✓ Firmware
✓ Hardware license
✓ Firmware license
✓ Documentation license
✓ Key pitch
✓ Soldering
✓ Soldered MCU
✓ Firmware targets
✓ Summary
✓ Key wiring
✓ Hotswap
✓ Splay
✓ Stagger

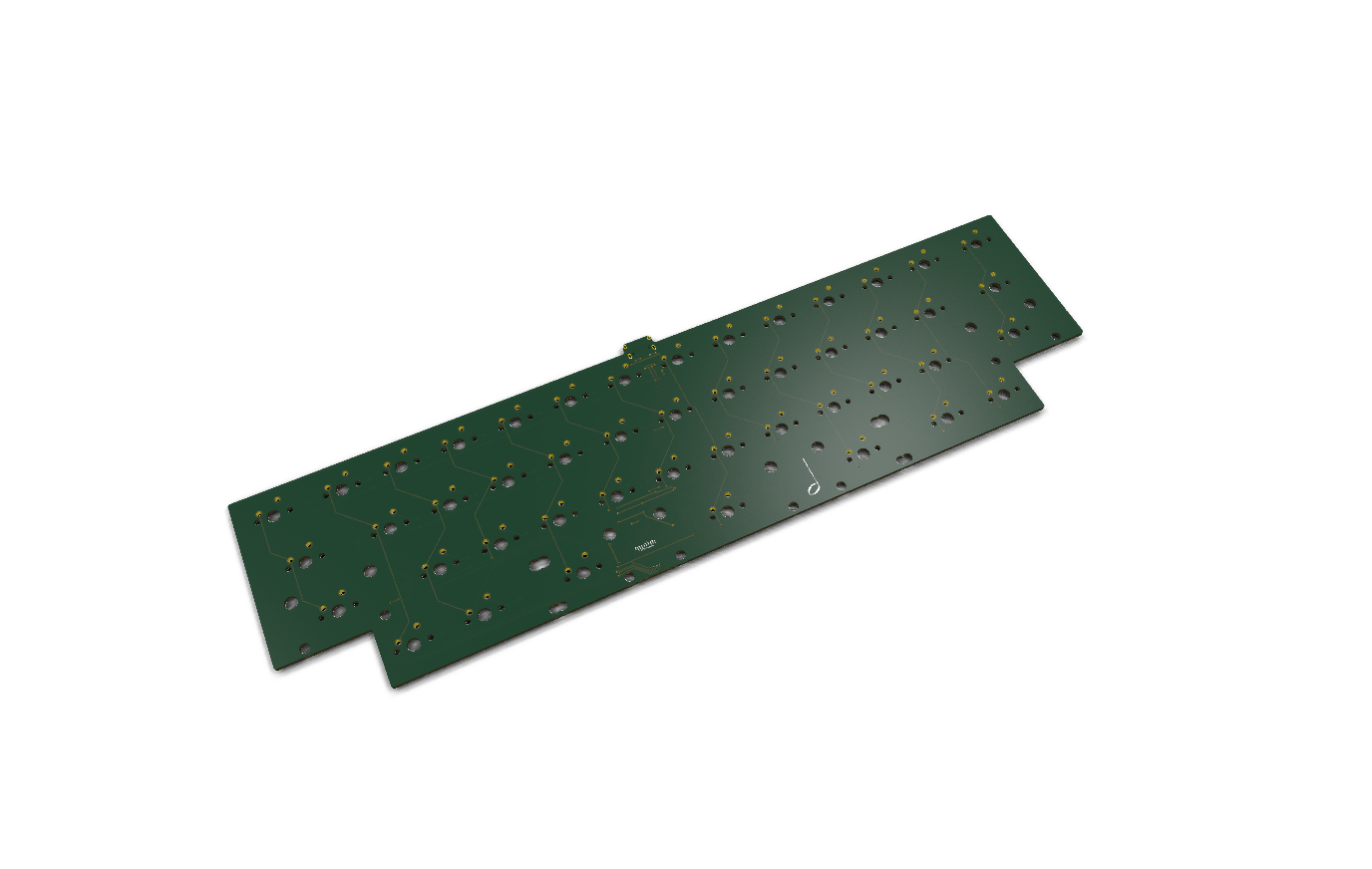

A symmetrical 50% keyboard

From the project’s README · https://github.com/matthewdias/minim

Layouts

46 keys

Spec

Shape

Body: unibody
Splay: no
Stagger: row-staggered
Key spacing: MX spacing · 19.05 × 19.05 mm

Switches

Switch footprint: MX
Hotswap: Mill-Max, or solder the switches in

Electronics

Controller: soldered ATmega32U4
Connectivity: Wired — the soldered ATmega32U4 has no radio
USB port: USB-C
Firmware: QMK (matthewdias/minim)
Firmware targets: ATmega32U4
Key wiring: 4×14 matrix, column-to-row diodes
Room for: — not recorded —
Power switch: no
Exposed components: — not recorded —

Building it

Build method: PCB
Soldering: SMD, fine-pitch (USB)
SMD required: yes

Licensing

Hardware: MIT
Firmware: MIT
Documentation: MIT

Sources

https://github.com/matthewdias/minim
