masonry
44 keys unibody
MX soldered STM32F072 QMK

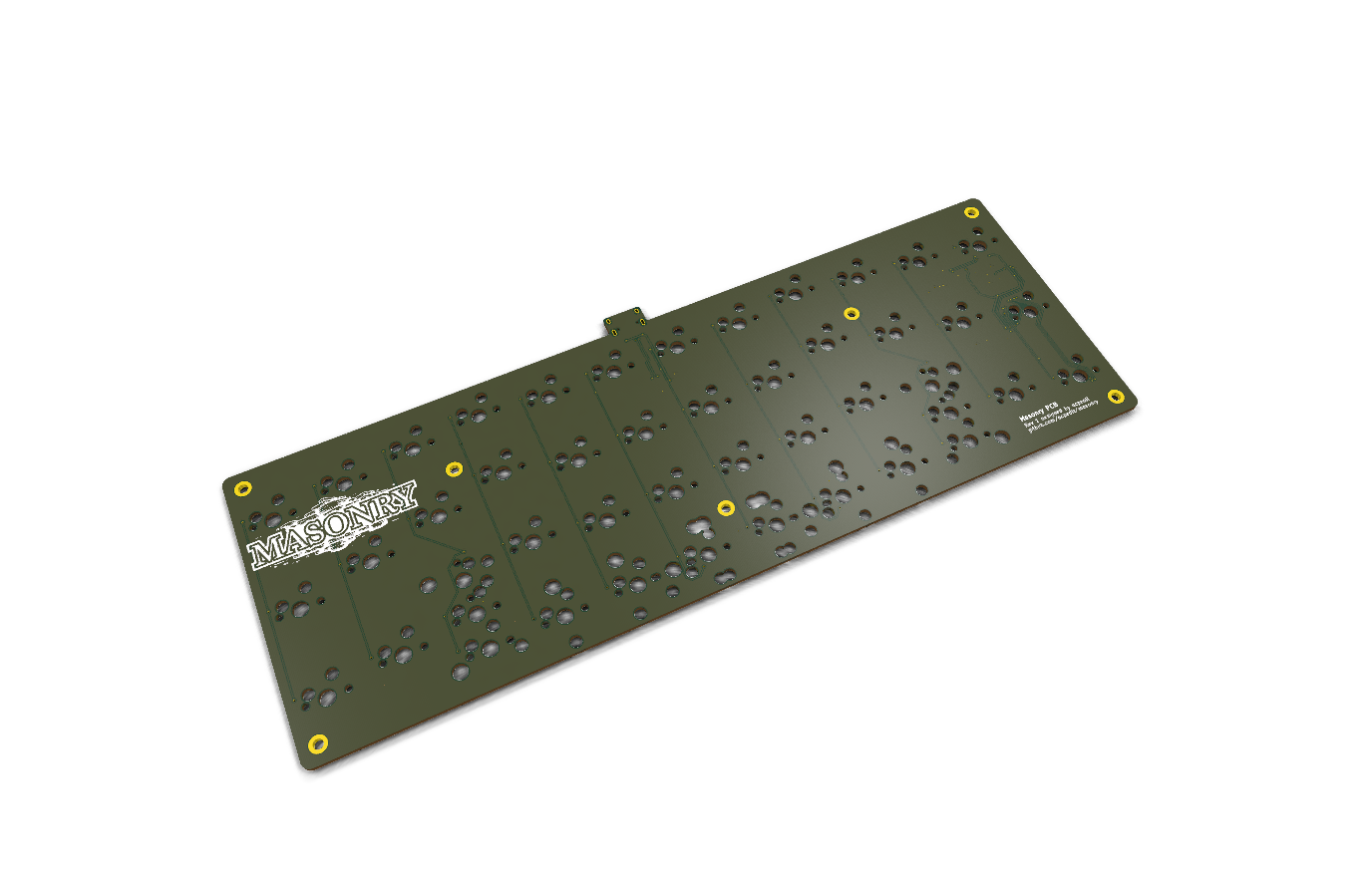

pcb.kicad_pcb.
No switches or keycaps: this is the board as manufactured.
What fits this board → Compare with another board →
Record 89% complete · 16 of 18 fields
- ✓ Layout
- ✓ Switch footprint
- ✓ Build method
- ✓ Controller
- ✓ Body
- ✓ Firmware
- ✓ Hardware license
- ✓ Firmware license
- ✓ Documentation license
- ✓ Key pitch
- ✓ Soldering
- ✓ Soldered MCU
- ✓ Firmware targets
- ✓ Summary
- ✓ Key wiring
- ✓ Hotswap
- ✗ Splay
- ✗ Stagger
Inspired by Bruce the Keyboard, this is a 12 column version with a less aggressive stagger.
Layouts
- 44 keys
Spec
Shape
- Body
- unibody
- Splay
- — not recorded —
- Stagger
- — not recorded —
- Key spacing
- MX spacing · 19.05 × 19.05 mm
Switches
- Switch footprint
- MX
- Hotswap
- Kailh socket, Gateron socket
Electronics
- Controller
- soldered STM32F072
- Connectivity
- Wired — the soldered STM32F072 has no radio
- USB port
- USB-C
- Firmware
- QMK (dcpedit/masonry)
- Firmware targets
- STM32F072
- Key wiring
- 8×6 matrix, column-to-row diodes
- Room for
- — not recorded —
- Power switch
- no
- Exposed components
- no
Building it
- Build method
- PCB
- Soldering
- SMD, fine-pitch (USB, passive, IC)
- SMD required
- yes
Licensing
- Hardware
- CC BY 4.0
- Firmware
- CC BY 4.0
- Documentation
- CC BY 4.0
