lumberjack
60 keys unibody
MX soldered ATmega328P QMK
What fits this board → Compare with another board →
Record 89% complete · 16 of 18 fields
- ✓ Layout
- ✓ Switch footprint
- ✓ Build method
- ✓ Controller
- ✓ Body
- ✓ Firmware
- ✓ Hardware license
- ✓ Firmware license
- ✓ Documentation license
- ✓ Key pitch
- ✓ Soldering
- ✓ Soldered MCU
- ✓ Firmware targets
- ✓ Summary
- ✓ Key wiring
- ✓ Hotswap
- ✗ Splay
- ✗ Stagger

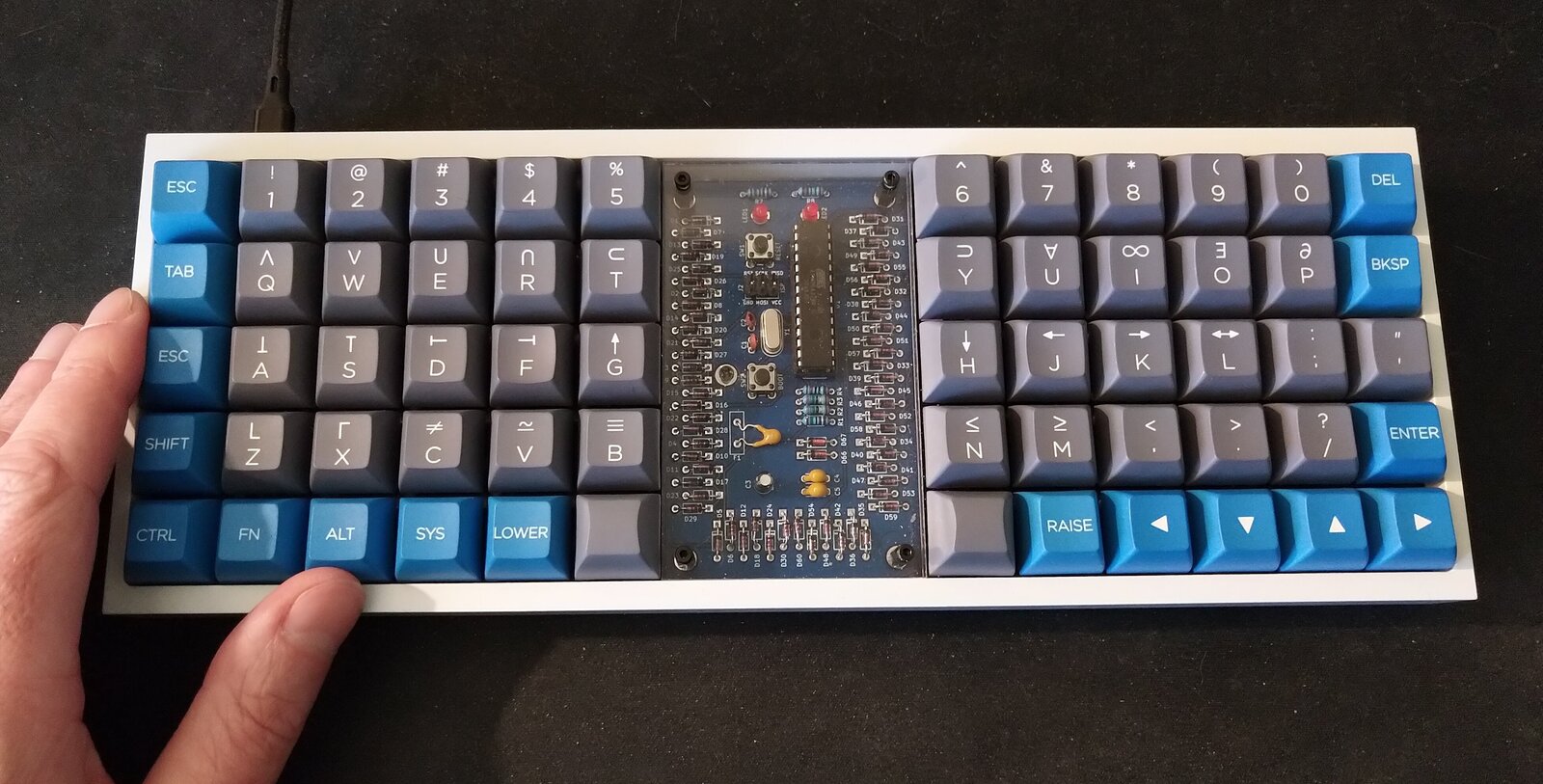

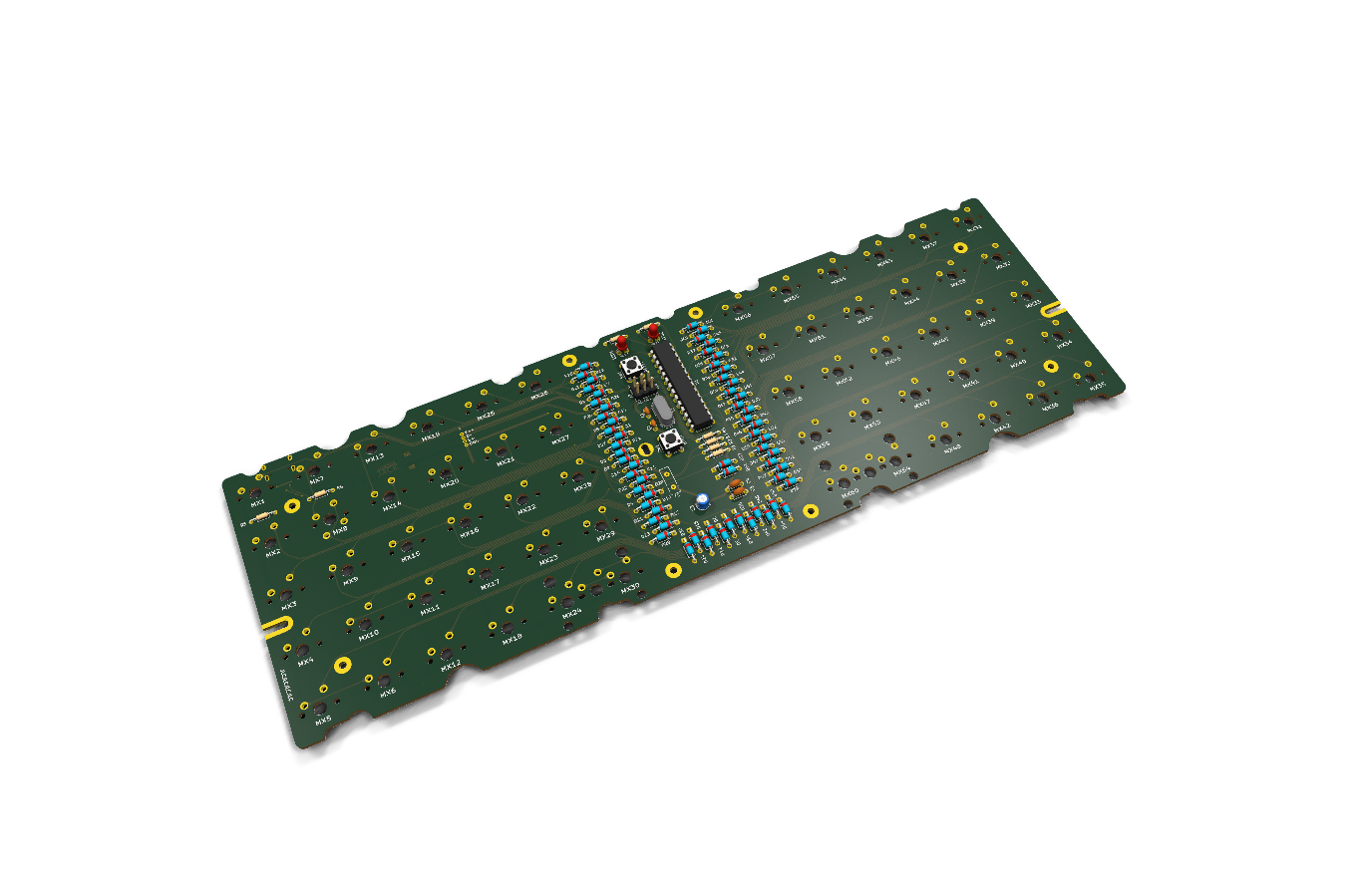

Lumberjack is a split 5x12 ortholinear keyboard PCB using through-hole components only.
Layouts
- 60 keys
Spec
Shape
- Body
- unibody
- Splay
- — not recorded —
- Stagger
- — not recorded —
- Key spacing
- MX spacing · 19.05 × 19.05 mm
Switches
- Switch footprint
- MX
- Hotswap
- Mill-Max, or solder the switches in
Electronics
- Controller
- soldered ATmega328P
- Connectivity
- Wired — the soldered ATmega328P has no radio
- USB port
- USB-C
- Firmware
- QMK (peej/lumberjack)
- Firmware targets
- ATmega328P
- Key wiring
- 6×10 matrix, column-to-row diodes
- Room for
- — not recorded —
- Power switch
- no
- Exposed components
- yes
Building it
- Build method
- PCB
- Soldering
- SMD, fine-pitch (USB)
- SMD required
- yes
Licensing
- Hardware
- MIT
- Firmware
- MIT
- Documentation
- MIT
