largelad
148 keys unibody
MX BlackPill socket QMK

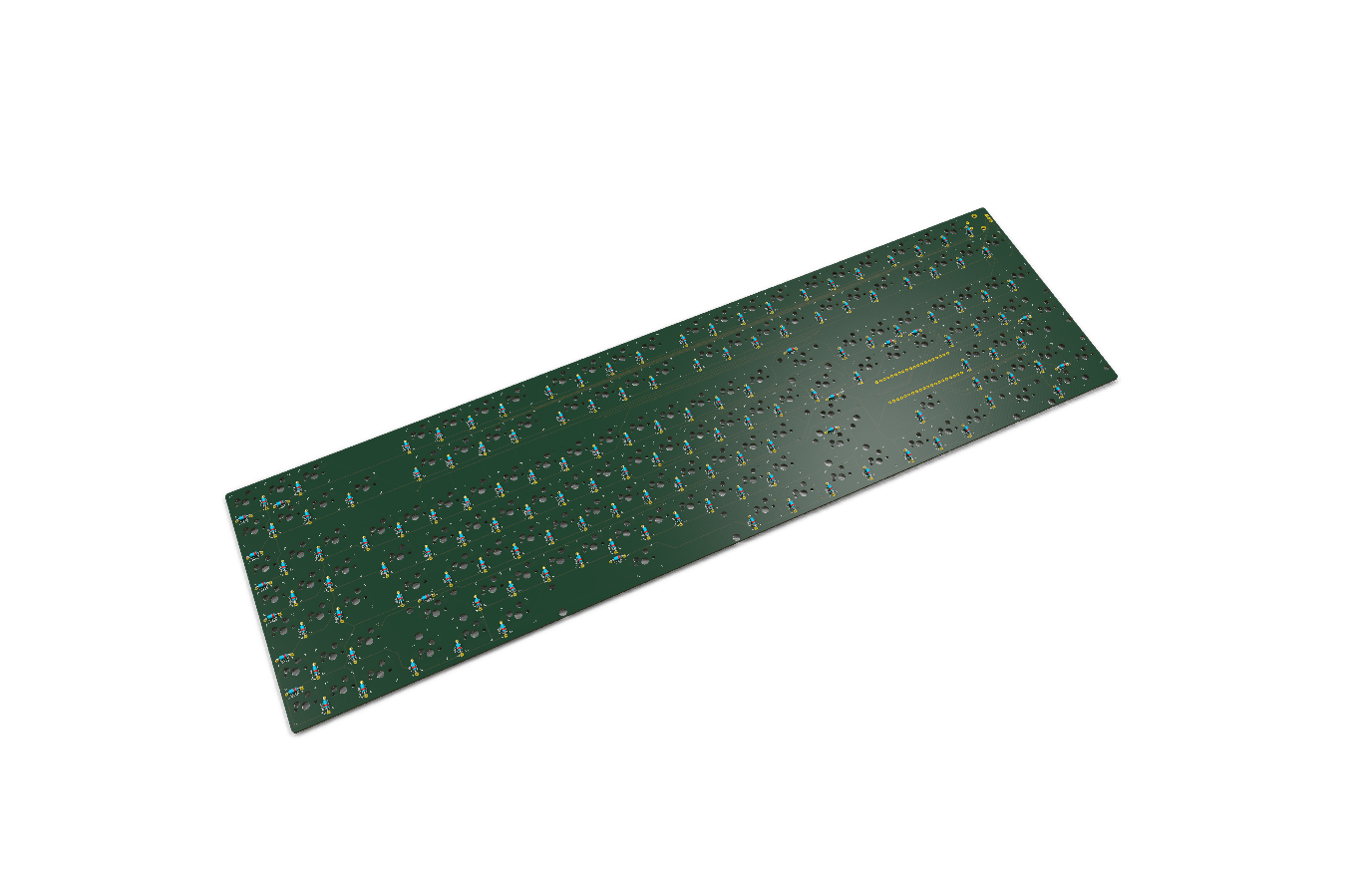

largelad.kicad_pcb.
No switches or keycaps: this is the board as manufactured.
What fits this board → Compare with another board →
Record 88% complete · 15 of 17 fields
- ✓ Layout
- ✓ Switch footprint
- ✓ Build method
- ✓ Controller
- ✓ Body
- ✓ Firmware
- ✓ Hardware license
- ✓ Firmware license
- ✓ Documentation license
- ✓ Key pitch
- ✓ Soldering
- ✓ Firmware targets
- ✓ Summary
- ✓ Key wiring
- ✓ Hotswap
- ✗ Splay
- ✗ Stagger
148 key hotswap keyboard with a Standard US layout at the core.
Layouts
- 148 keys
Spec
Shape
- Body
- unibody
- Splay
- — not recorded —
- Stagger
- — not recorded —
- Key spacing
- MX spacing · 19.05 × 19.05 mm
Switches
- Switch footprint
- MX
- Hotswap
- Kailh socket, Gateron socket
Electronics
- Controller
- BlackPill socket
- Connectivity
- Wireless with a MechWild PillBug — needs a ZMK config
- USB port
- USB-C, on the dev board
- Firmware
- QMK (large_lad)
- Firmware targets
- STM32F411
- Key wiring
- 12×13 matrix, column-to-row diodes
- Room for
- — not recorded —
- Power switch
- no
- Exposed components
- no
Building it
- Build method
- PCB
- Soldering
- through-hole (diode)
- SMD required
- no
Licensing
- Hardware
- CC BY-SA 4.0
- Firmware
- CC BY-SA 4.0
- Documentation
- CC BY-SA 4.0
