juliet

by na-cly · ★ 3 · checked today ·

derived from romeo

44 / 43 / 42 / 41 keys unibody

MX Pro Micro socket QMK

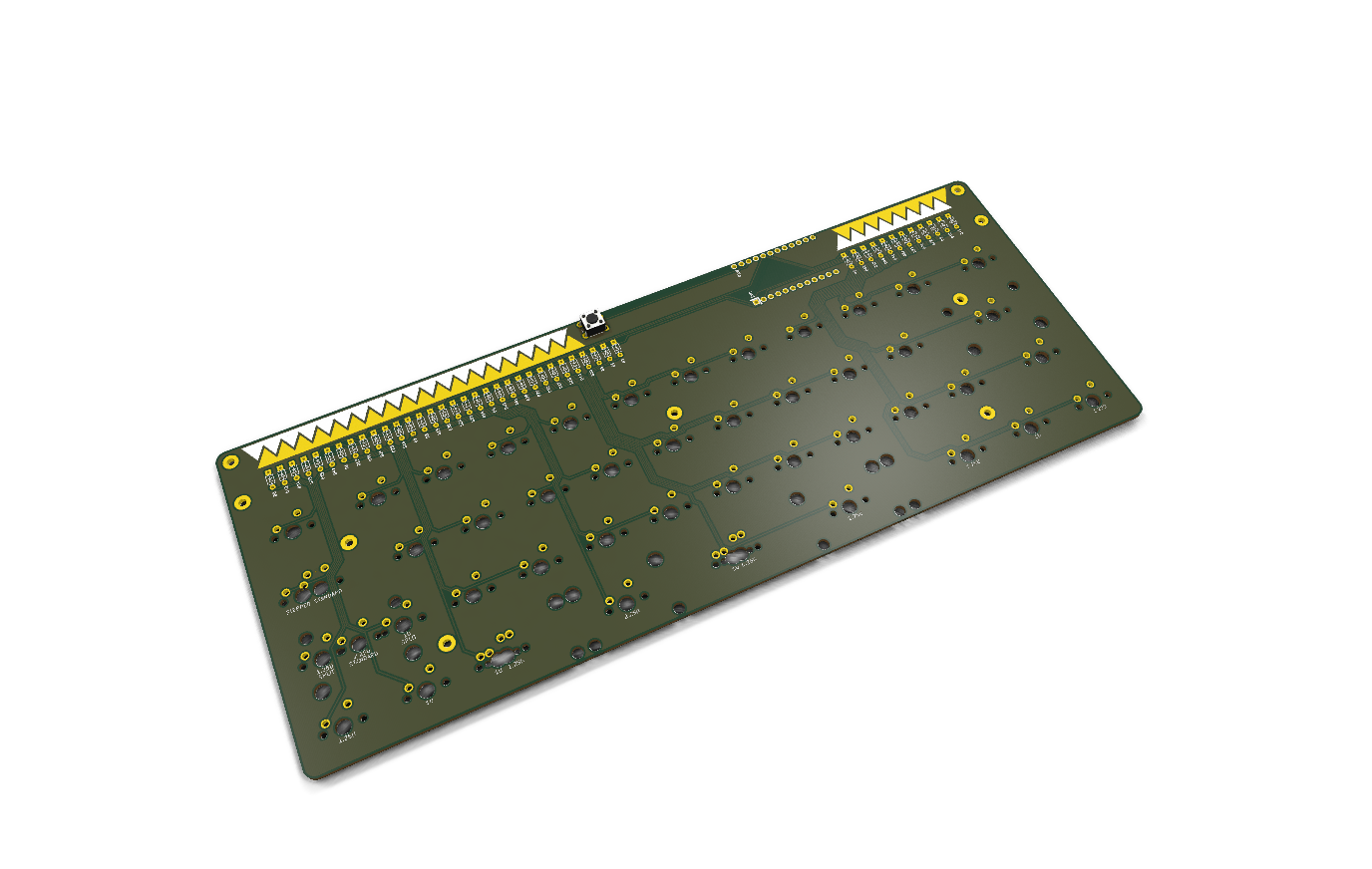

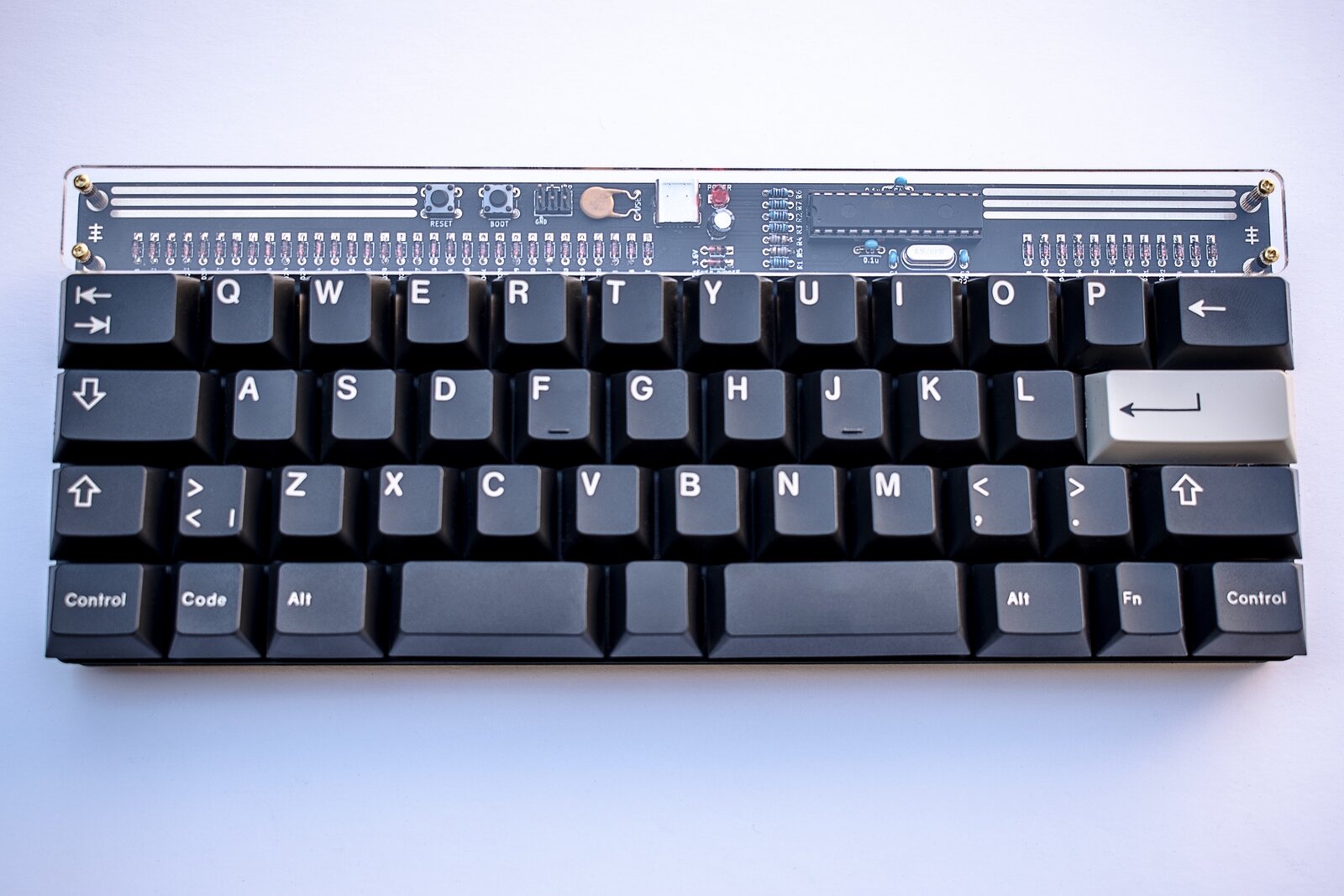

Photo of an assembled juliet — An assembled juliet, from the project's own README.

What fits this board → Compare with another board →

Record 82% complete · 14 of 17 fields

✓ Layout
✓ Switch footprint
✓ Build method
✓ Controller
✓ Body
✓ Firmware
✓ Hardware license
✓ Firmware license
✓ Documentation license
✓ Key pitch
✓ Soldering
✓ Firmware targets
✗ Summary
✓ Key wiring
✓ Hotswap
✗ Splay
✗ Stagger

No summary recorded.

Layouts

44 keys
43 keys
42 keys
41 keys

Spec

Shape

Body: unibody
Splay: — not recorded —
Stagger: — not recorded —
Key spacing: MX spacing · 19.05 × 19.05 mm

Switches

Switch footprint: MX
Hotswap: Mill-Max, or solder the switches in

Electronics

Controller: Pro Micro socket
Connectivity: Wireless with a nice!nano v2 — needs a ZMK config
USB port: USB-C or micro-USB, depends on the dev board
Firmware: QMK (handwired/juliet)
Firmware targets: ATmega32U4
Key wiring: 4×12 matrix, column-to-row diodes
Room for: — not recorded —
Power switch: no
Exposed components: yes

Building it

Build method: PCB
Soldering: through-hole (diode)
SMD required: no

Licensing

Hardware: GPL-3.0-or-later
Firmware: GPL-3.0-or-later
Documentation: GPL-3.0-or-later

Sources

https://github.com/na-cly/juliet
