Game Hand
27 keys unibody
MX soldered ATmega32U2 QMK
GameHand.kicad_pcb.

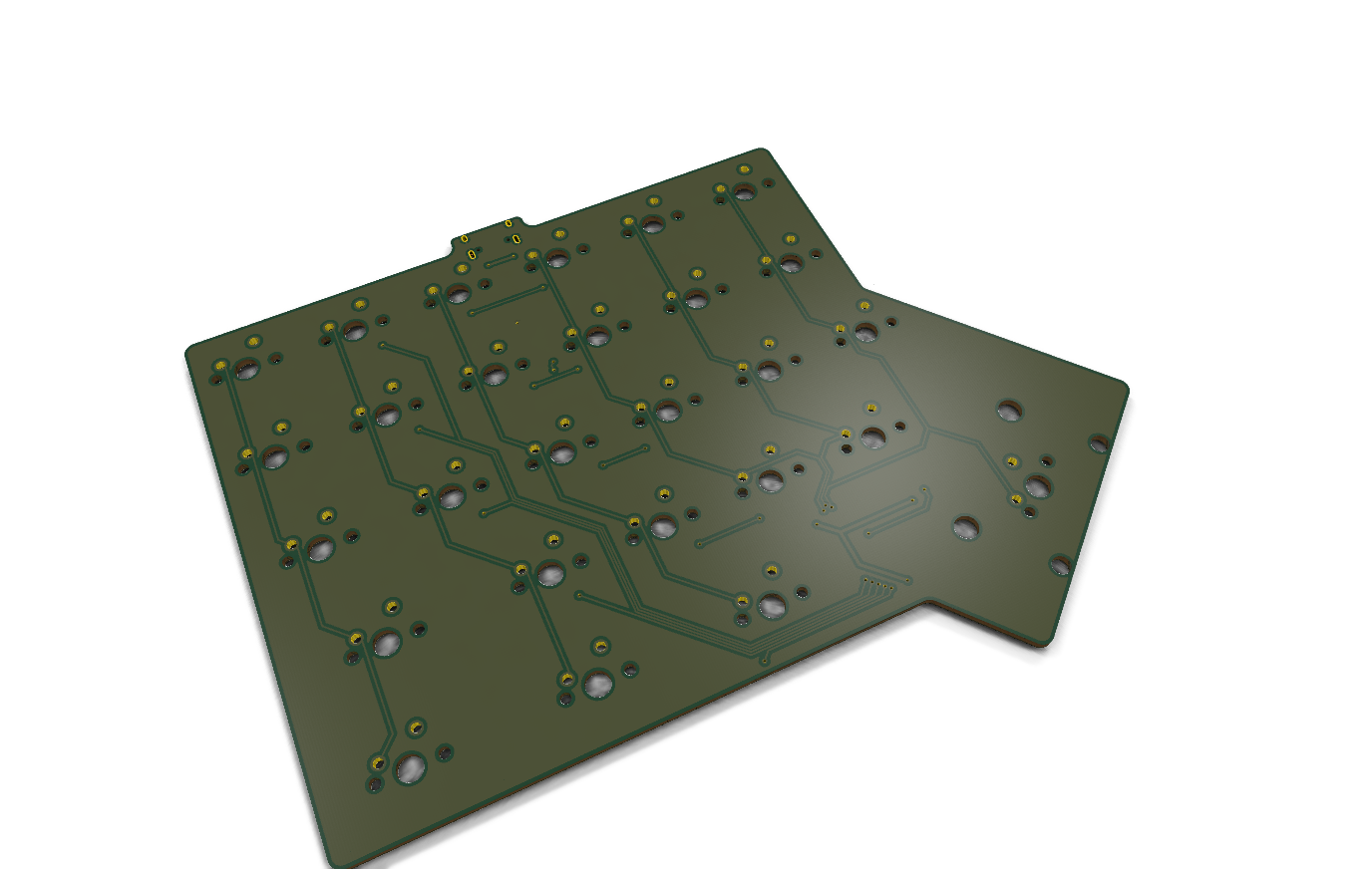

No switches or keycaps: this is the board as manufactured.
What fits this board → Compare with another board →
Record 94% complete · 17 of 18 fields
- ✓ Layout
- ✓ Switch footprint
- ✓ Build method
- ✓ Controller
- ✓ Body
- ✓ Firmware
- ✓ Hardware license
- ✓ Firmware license
- ✓ Documentation license
- ✓ Key pitch
- ✓ Soldering
- ✓ Soldered MCU
- ✓ Firmware targets
- ✓ Summary
- ✓ Key wiring
- ✓ Hotswap
- ✓ Splay
- ✗ Stagger
Left-hand gaming keypad with a 3D printed case
Layouts
- 27 keys
Spec
Shape
- Body
- unibody
- Splay
- no
- Stagger
- — not recorded —
- Key spacing
- MX spacing · 19.05 × 19.05 mm
Switches
- Switch footprint
- MX
- Hotswap
- Mill-Max, or solder the switches in
Electronics
- Controller
- soldered ATmega32U2
- Connectivity
- Wired — the soldered ATmega32U2 has no radio
- USB port
- USB-C
- Firmware
- QMK (kb_elmo/gamehand)
- Firmware targets
- ATmega32U2
- Key wiring
- 5×6 matrix, column-to-row diodes
- Room for
- — not recorded —
- Power switch
- no
- Exposed components
- no
Building it
- Build method
- PCB
- Soldering
- SMD, fine-pitch (USB, IC)
- SMD required
- yes
Licensing
- Hardware
- CC-BY-NC-SA-4.0
- Firmware
- CC-BY-NC-SA-4.0
- Documentation
- CC-BY-NC-SA-4.0
