Env MCRO
12 keys unibody
MX Raspberry Pi Pico socket QMK
EnvMCRO.kicad_pcb —
this design has 1 other board file
not shown.

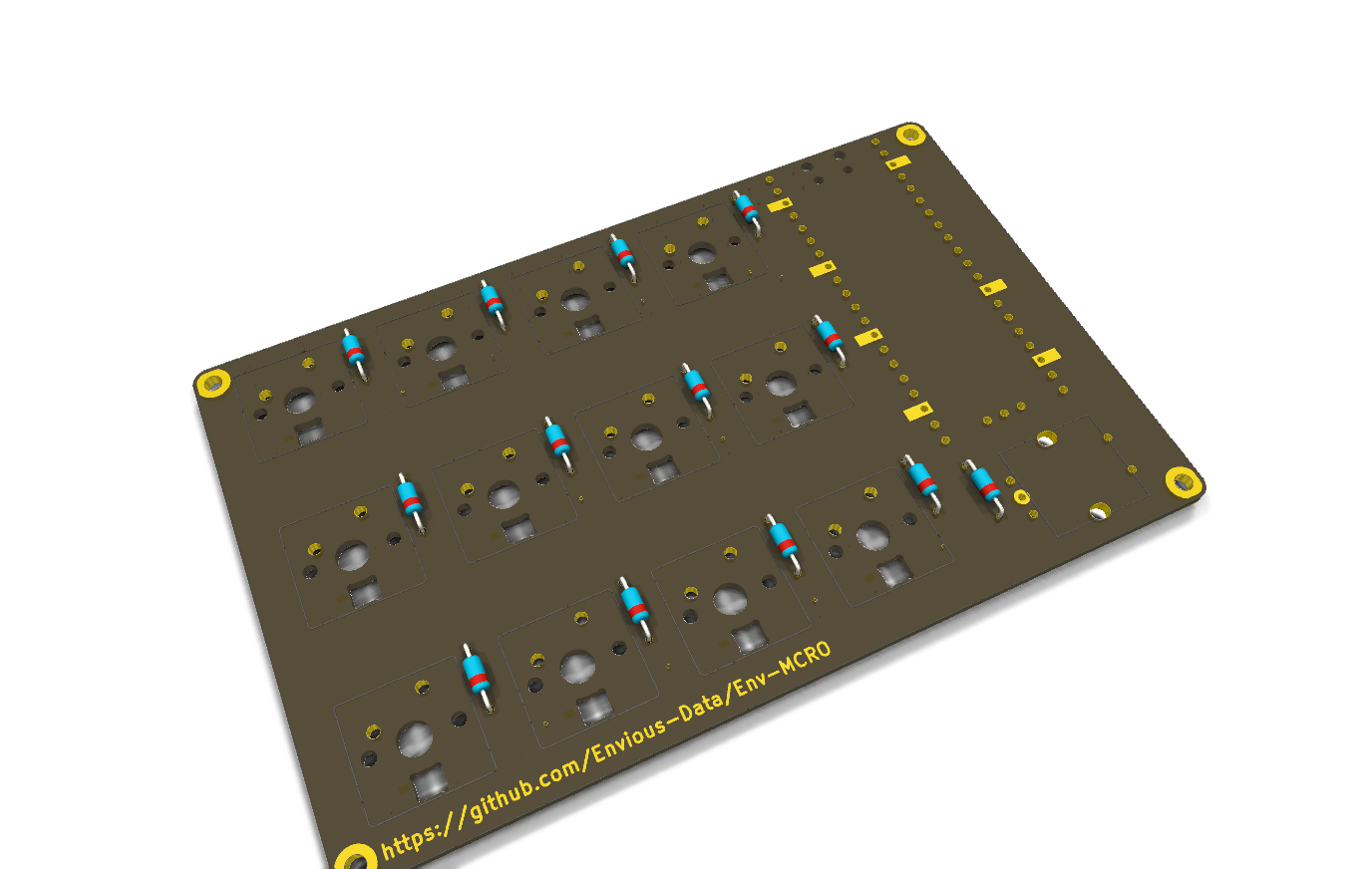

No switches or keycaps: this is the board as manufactured.
What fits this board → Compare with another board →
Record 100% complete · 17 of 17 fields
- ✓ Layout
- ✓ Switch footprint
- ✓ Build method
- ✓ Controller
- ✓ Body
- ✓ Firmware
- ✓ Hardware license
- ✓ Firmware license
- ✓ Documentation license
- ✓ Key pitch
- ✓ Soldering
- ✓ Firmware targets
- ✓ Summary
- ✓ Key wiring
- ✓ Hotswap
- ✓ Splay
- ✓ Stagger
A Raspberry Pi Pico powered Macro board, like a Streamdeck but cheaper and simpler.
Layouts
- 12 keys
Spec
Shape
- Body
- unibody
- Splay
- no
- Stagger
- ortholinear
- Key spacing
- MX spacing · 19.05 × 19.05 mm
Switches
- Switch footprint
- MX
- Hotswap
- Mill-Max, or solder the switches in
Electronics
- Controller
- Raspberry Pi Pico socket
- Connectivity
- No wireless controller we know of fits this socket
- USB port
- micro-USB, on the dev board
- Firmware
- QMK (enviousdesign/mcro/rev1)
- Firmware targets
- RP2040
- Key wiring
- 3×4 matrix, column-to-row diodes
- Room for
- encoder
- Power switch
- no
- Exposed components
- — not recorded —
Building it
- Build method
- PCB
- Soldering
- SMD, hand-solderable (LED)
- SMD required
- yes
Licensing
- Hardware
- GPL-3.0-or-later
- Firmware
- GPL-3.0-or-later
- Documentation
- GPL-3.0-or-later
