discipline
69 / 68 / 67 / 66 keys unibody
MX soldered ATmega32A QMK
What fits this board → Compare with another board →
Record 89% complete · 16 of 18 fields
- ✓ Layout
- ✓ Switch footprint
- ✓ Build method
- ✓ Controller
- ✓ Body
- ✓ Firmware
- ✓ Hardware license
- ✓ Firmware license
- ✓ Documentation license
- ✓ Key pitch
- ✓ Soldering
- ✓ Soldered MCU
- ✓ Firmware targets
- ✓ Summary
- ✓ Key wiring
- ✓ Hotswap
- ✗ Splay
- ✗ Stagger

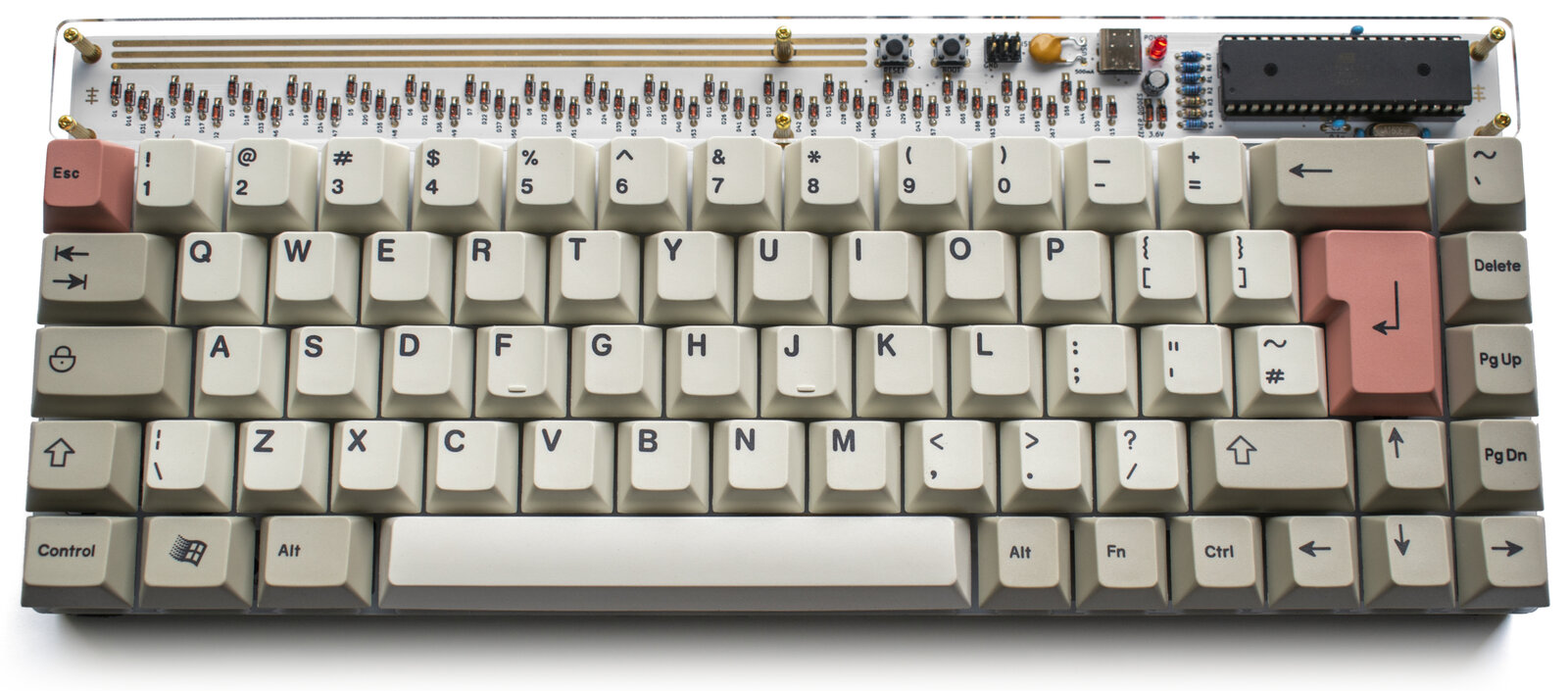

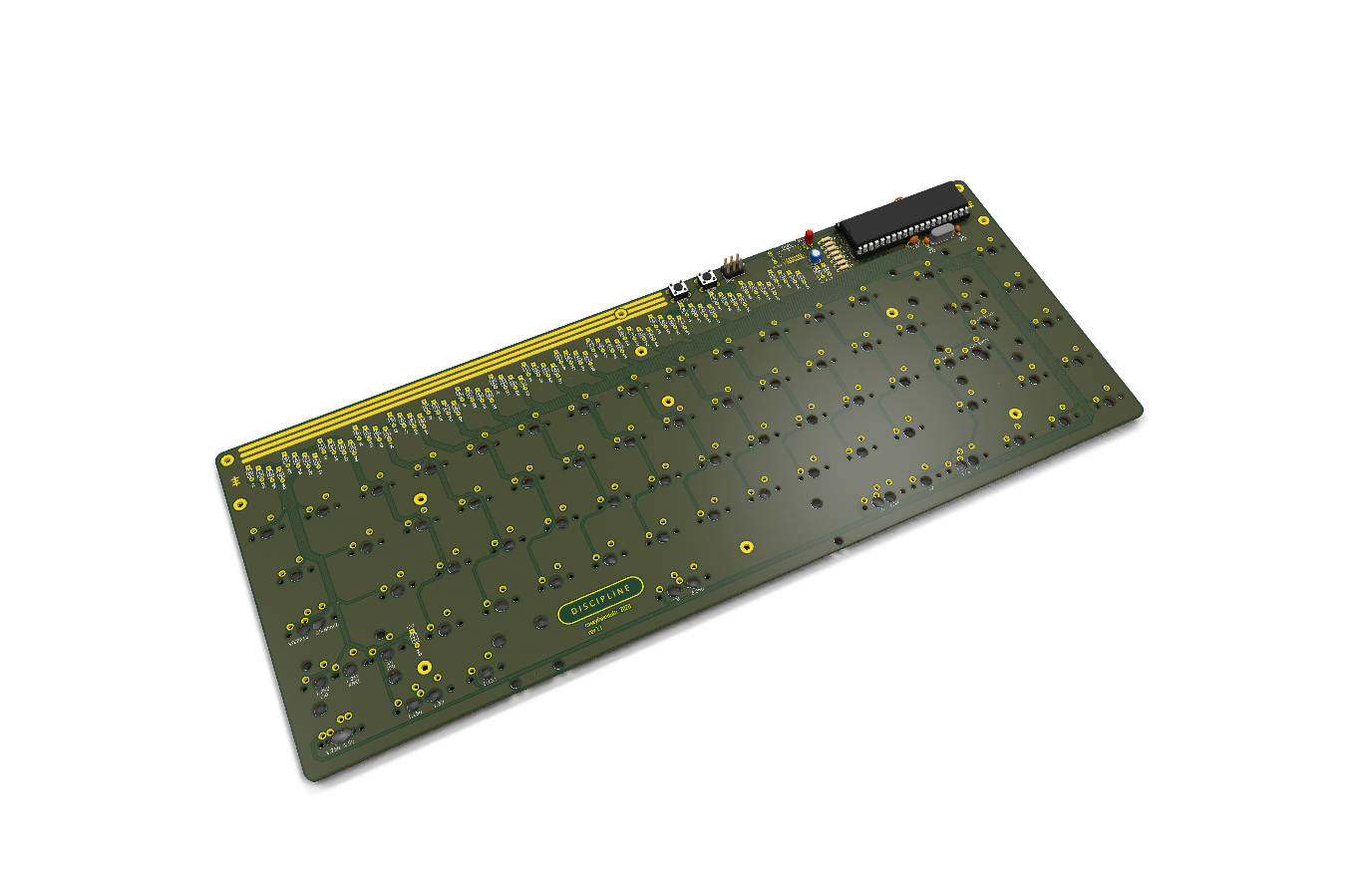

65% keyboard assembled with only through hole components, including usb type-c
Layouts
- 69 keys
- 68 keys
- 67 keys
- 66 keys
Spec
Shape
- Body
- unibody
- Splay
- — not recorded —
- Stagger
- — not recorded —
- Key spacing
- MX spacing · 19.05 × 19.05 mm
Switches
- Switch footprint
- MX
- Hotswap
- Mill-Max, or solder the switches in
Electronics
- Controller
- soldered ATmega32A
- Connectivity
- Wired — the soldered ATmega32A has no radio
- USB port
- USB-C
- Firmware
- QMK (coseyfannitutti/discipline)
- Firmware targets
- ATmega32A
- Key wiring
- 5×15 matrix, column-to-row diodes
- Room for
- — not recorded —
- Power switch
- no
- Exposed components
- yes
Building it
- Build method
- PCB
- Soldering
- SMD, fine-pitch (USB)
- SMD required
- yes
Licensing
- Hardware
- CC-BY-NC-4.0
- Firmware
- CC-BY-NC-4.0
- Documentation
- CC-BY-NC-4.0
