cypher

by westfoxtrot · ★ 19 · checked today ·

88 / 82 / 81 keys unibody

MX soldered STM32F072

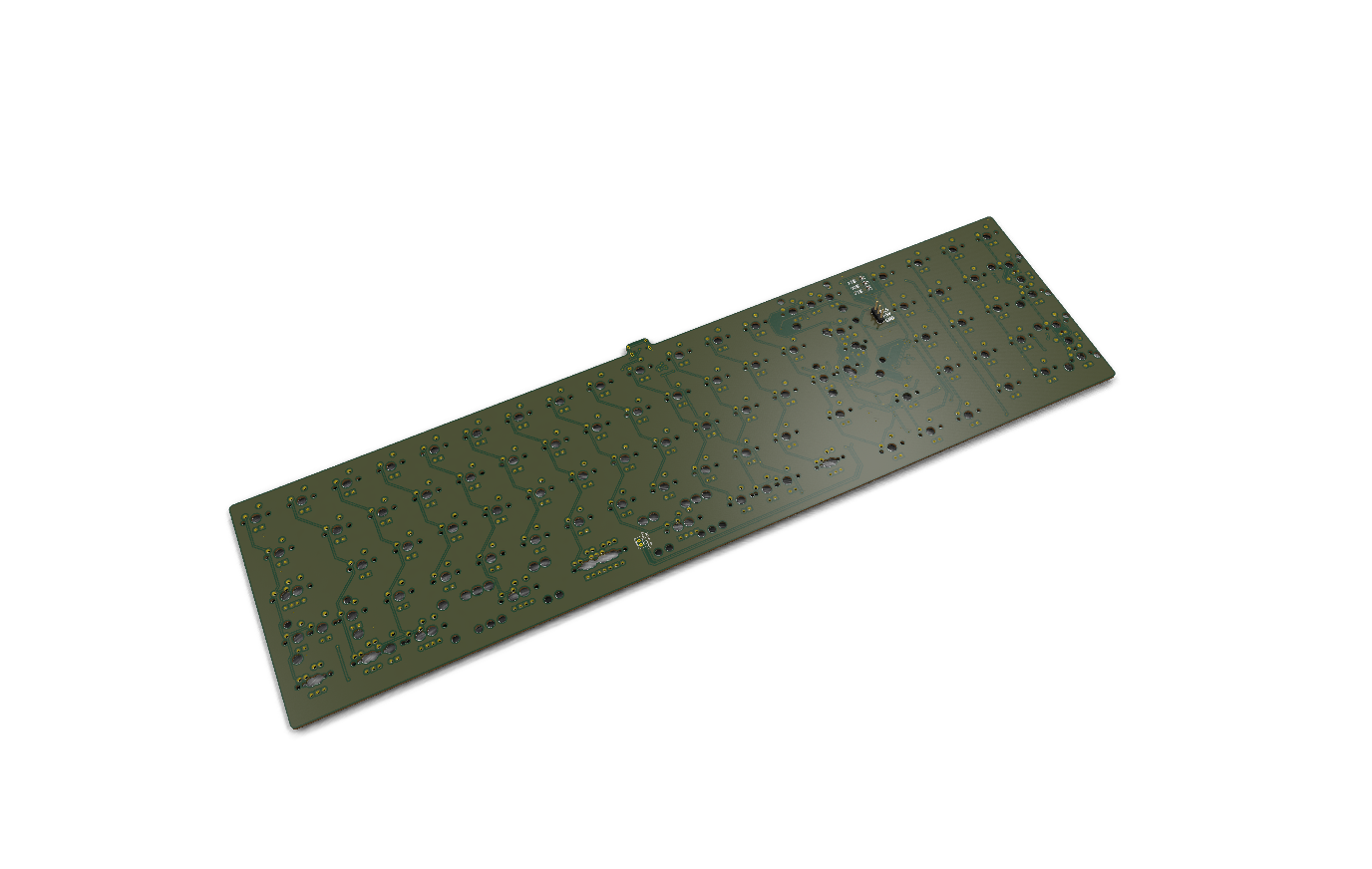

3D render of the cypher circuit board — The bare PCB, drawn from cypher.kicad_pcb. No switches or keycaps: this is the board as manufactured.

What fits this board → Compare with another board →

Record 75% complete · 12 of 16 fields

✓ Layout
✓ Switch footprint
✓ Build method
✓ Controller
✓ Body
✓ Hardware license
✓ Firmware license
✓ Documentation license
✓ Key pitch
✓ Soldering
✓ Soldered MCU
✗ Summary
✗ Key wiring
✓ Hotswap
✗ Splay
✗ Stagger

No summary recorded.

Layouts

88 keys
82 keys
81 keys

Spec

Shape

Body: unibody
Splay: — not recorded —
Stagger: — not recorded —
Key spacing: MX spacing · 19.05 × 19.05 mm

Switches

Switch footprint: MX
Hotswap: Mill-Max, or solder the switches in

Electronics

Controller: soldered STM32F072
Connectivity: Wired — the soldered STM32F072 has no radio
USB port: USB-C
Firmware: — not recorded —
Key wiring: — not recorded —
Room for: — not recorded —
Power switch: no
Exposed components: no

Building it

Build method: PCB
Soldering: SMD, fine-pitch (USB, LED, IC)
SMD required: yes

Licensing

Hardware: CC BY-SA 4.0
Firmware: CC BY-SA 4.0
Documentation: CC BY-SA 4.0

Sources

https://github.com/westfoxtrot/cypher_pcb
