Chameleon

by TweetyDaBird · ★ 14 · checked 2 days ago ·

60 / 59 / 58 / 48 / 47 / 46 keys unibody

MX soldered RP2040 QMK

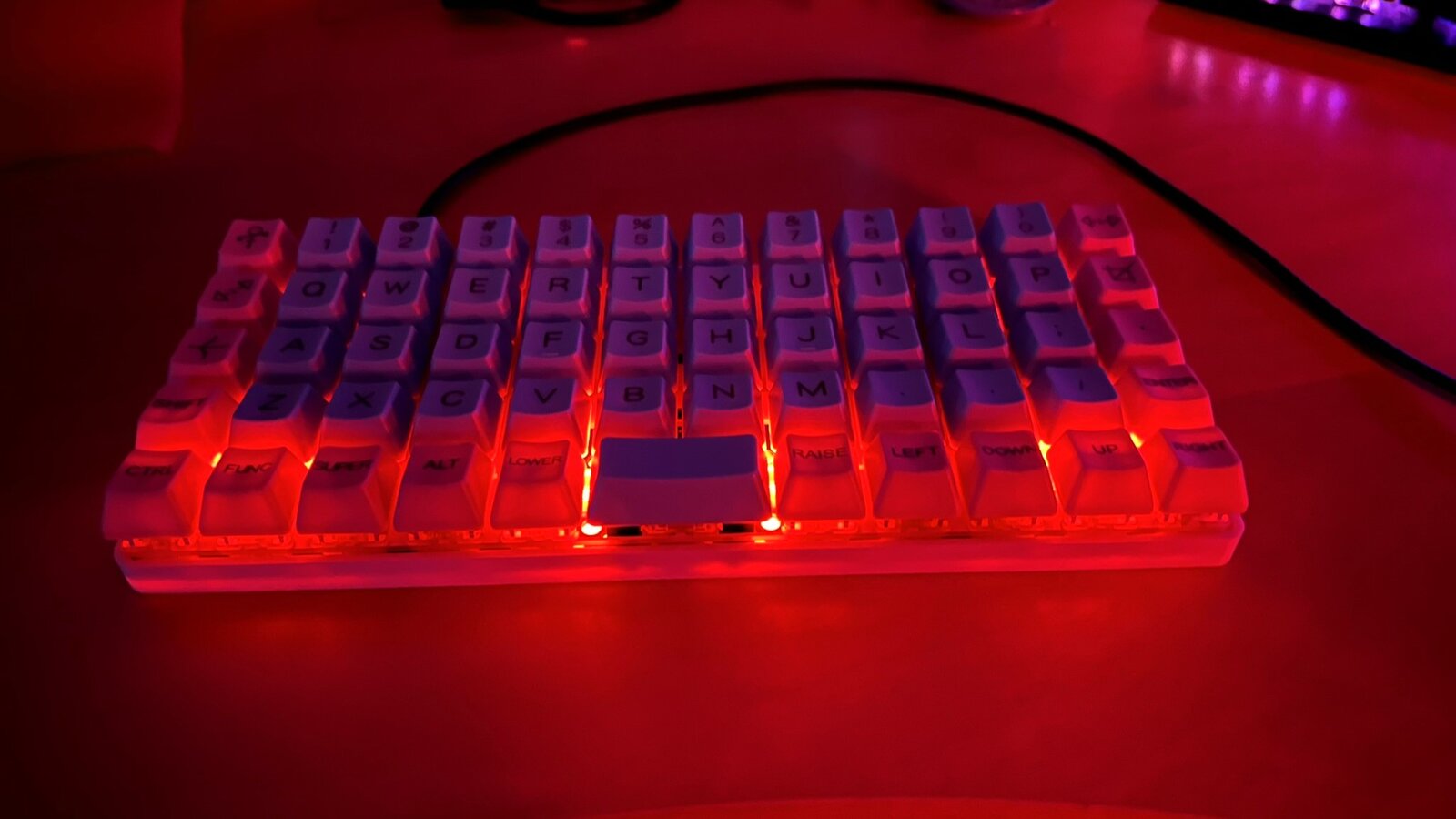

Photo of an assembled Chameleon — An assembled Chameleon, from the project's own README.

What fits this board → Compare with another board →

Record 94% complete · 17 of 18 fields

✓ Layout
✓ Switch footprint
✓ Build method
✓ Controller
✓ Body
✓ Firmware
✓ Hardware license
✓ Firmware license
✓ Documentation license
✓ Key pitch
✓ Soldering
✓ Soldered MCU
✓ Firmware targets
✗ Summary
✓ Key wiring
✓ Hotswap
✓ Splay
✓ Stagger

No summary recorded.

Layouts

60 keys
59 keys
58 keys
48 keys
47 keys
46 keys

Spec

Shape

Body: unibody
Splay: no
Stagger: ortholinear
Key spacing: MX spacing · 19.05 × 19.05 mm

Switches

Switch footprint: MX
Hotswap: Kailh socket, Gateron socket

Electronics

Controller: soldered RP2040
Connectivity: Wired — the soldered RP2040 has no radio
USB port: USB-C
Firmware: QMK (tweetydabird/chameleon)
Firmware targets: RP2040
Key wiring: 10×6 matrix, column-to-row diodes
Room for: encoder
Power switch: no
Exposed components: no

Building it

Build method: PCB
Soldering: SMD, fine-pitch (MCU, USB, passive, IC)
SMD required: yes

Licensing

Hardware: CC BY-SA 4.0
Firmware: CC BY-SA 4.0
Documentation: CC BY-SA 4.0

Sources

https://github.com/TweetyDaBird/Fat-Chameleon
