bevi

by sendyyeah · ★ 22 · checked today ·

80 keys unibody

MX Pro Micro socket QMK

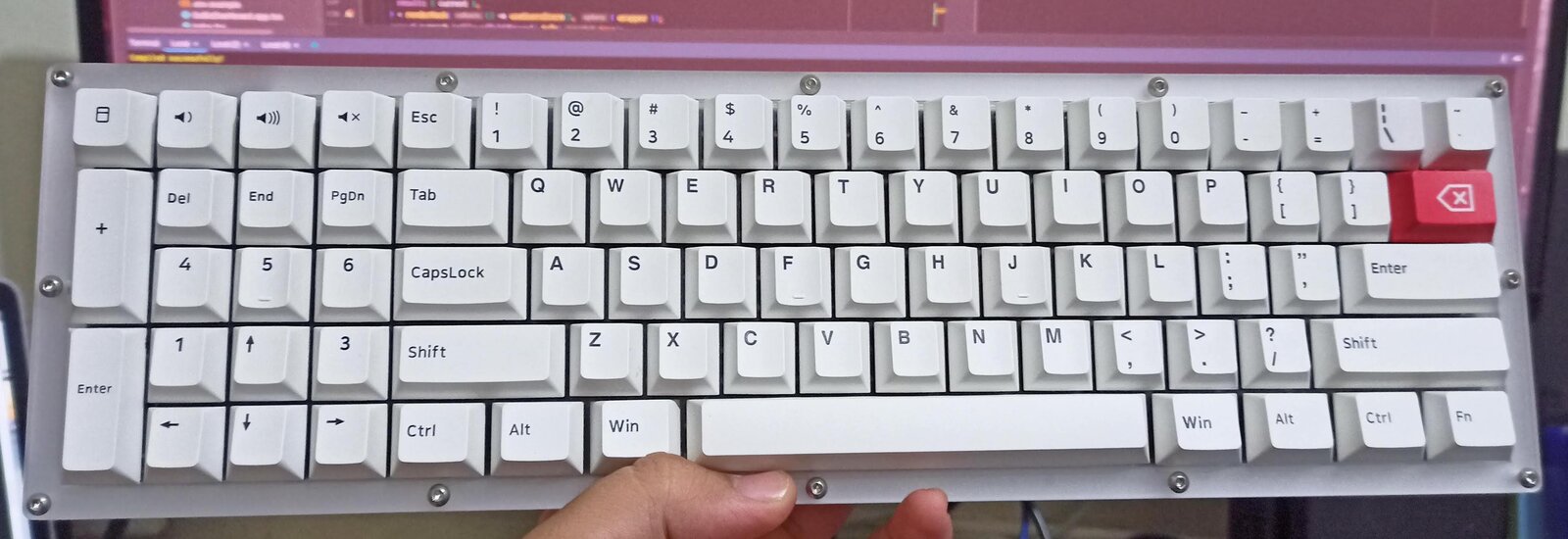

Photo of an assembled bevi — An assembled bevi, from the project's own README.

What fits this board → Compare with another board →

Record 94% complete · 16 of 17 fields

✓ Layout
✓ Switch footprint
✓ Build method
✓ Controller
✓ Body
✓ Firmware
✓ Hardware license
✓ Firmware license
✓ Documentation license
✓ Key pitch
✓ Soldering
✓ Firmware targets
✗ Summary
✓ Key wiring
✓ Hotswap
✓ Splay
✓ Stagger

No summary recorded.

Layouts

80 keys

Spec

Shape

Body: unibody
Splay: no
Stagger: row-staggered
Key spacing: MX spacing · 19.05 × 19.05 mm

Switches

Switch footprint: MX
Hotswap: Mill-Max, or solder the switches in

Electronics

Controller: Pro Micro socket
Connectivity: Wireless with a nice!nano v2 — needs a ZMK config
USB port: mini-USB
Firmware: QMK (sendyyeah/bevi)
Firmware targets: ATmega32U4
Key wiring: 10×8 matrix, column-to-row diodes
Room for: — not recorded —
Power switch: no
Exposed components: no

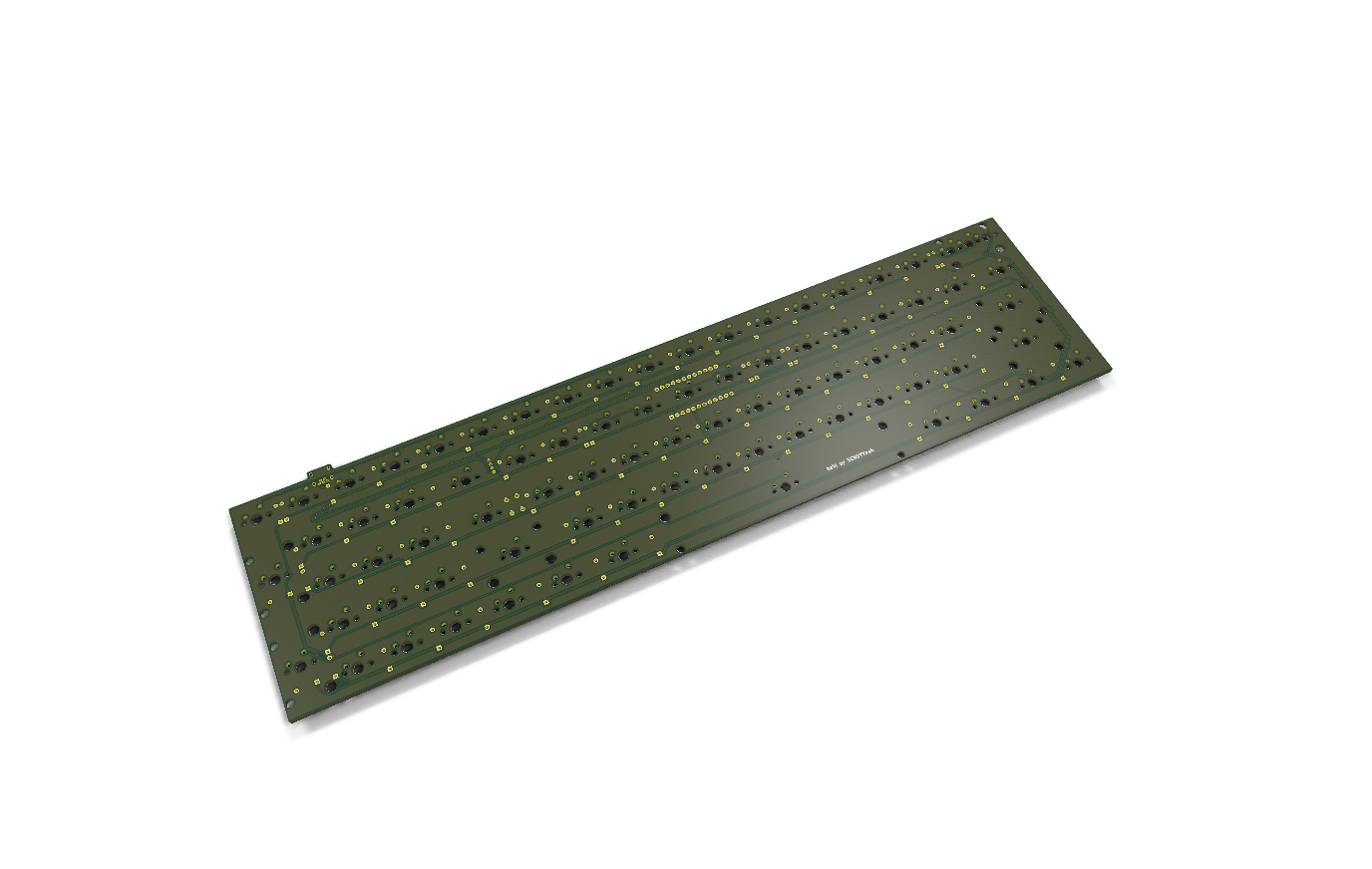

Building it

Build method: PCB
Soldering: SMD, hand-solderable (USB)
SMD required: yes

Licensing

Hardware: GPL-3.0-or-later
Firmware: GPL-3.0-or-later
Documentation: GPL-3.0-or-later

Sources

https://github.com/sendyyeah/bevi
