bakeneko 65
68 keys unibody
MX soldered ATmega32U4 QMK
What fits this board → Compare with another board →
Record 100% complete · 18 of 18 fields
- ✓ Layout
- ✓ Switch footprint
- ✓ Build method
- ✓ Controller
- ✓ Body
- ✓ Firmware
- ✓ Hardware license
- ✓ Firmware license
- ✓ Documentation license
- ✓ Key pitch
- ✓ Soldering
- ✓ Soldered MCU
- ✓ Firmware targets
- ✓ Summary
- ✓ Key wiring
- ✓ Hotswap
- ✓ Splay
- ✓ Stagger

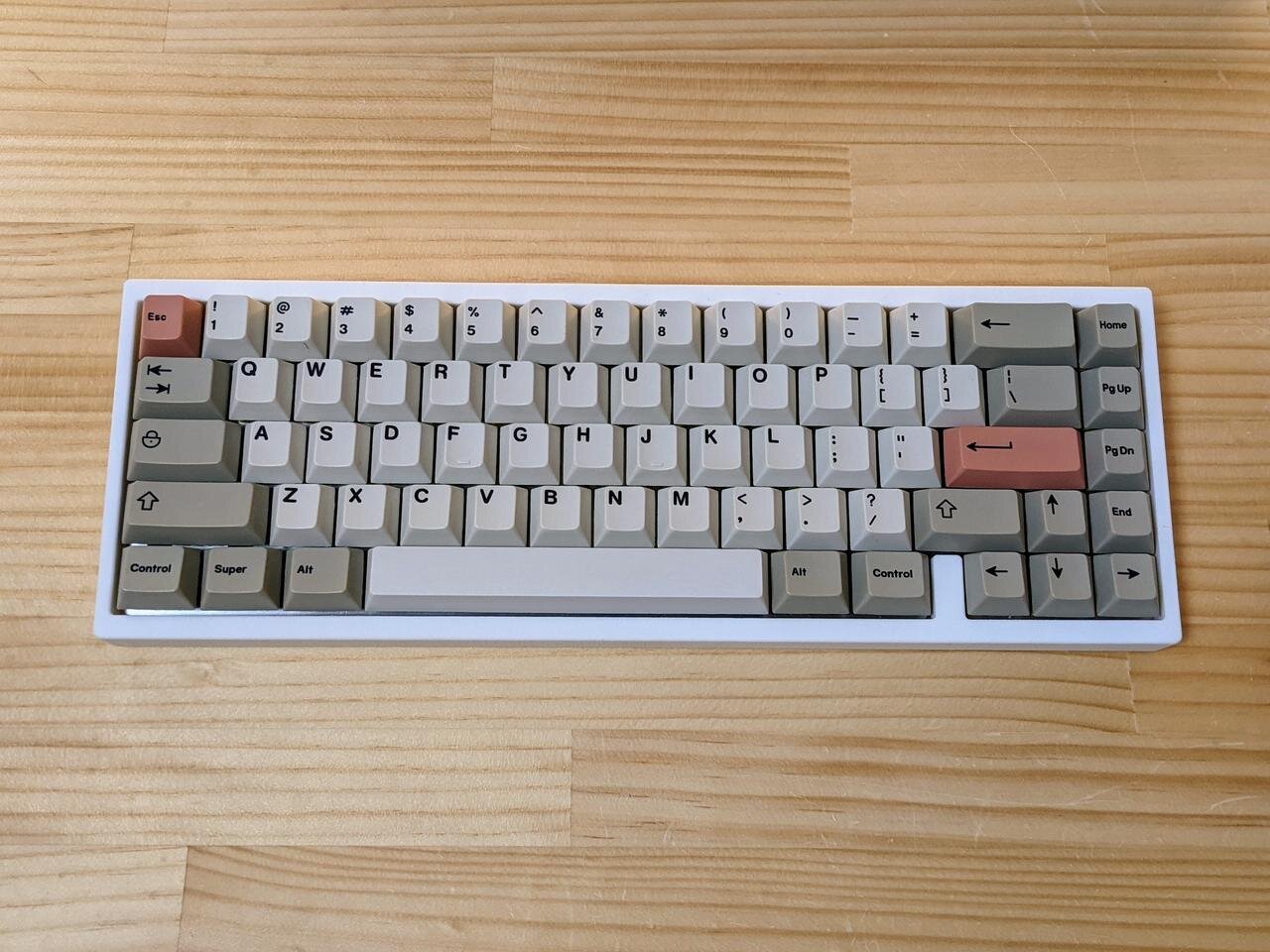

A simple 65% keyboard for DIYers. This project is a special homage to TGR x Singa UNIKORN 60 and OTD 356 Mini. See also the introduction video.
Layouts
- 68 keys
Spec
Shape
- Body
- unibody
- Splay
- no
- Stagger
- row-staggered
- Key spacing
- MX spacing · 19.05 × 19.05 mm
Switches
- Switch footprint
- MX
- Hotswap
- Mill-Max, or solder the switches in
Electronics
- Controller
- soldered ATmega32U4
- Connectivity
- Wired — the soldered ATmega32U4 has no radio
- USB port
- on a separate USB daughterboard
- Firmware
- QMK (kkatano/bakeneko65/rev2), QMK (kkatano/bakeneko65/rev3)
- Firmware targets
- ATmega32U4
- Key wiring
- 5×16 matrix, column-to-row diodes
- Room for
- — not recorded —
- Power switch
- no
- Exposed components
- no
Building it
- Build method

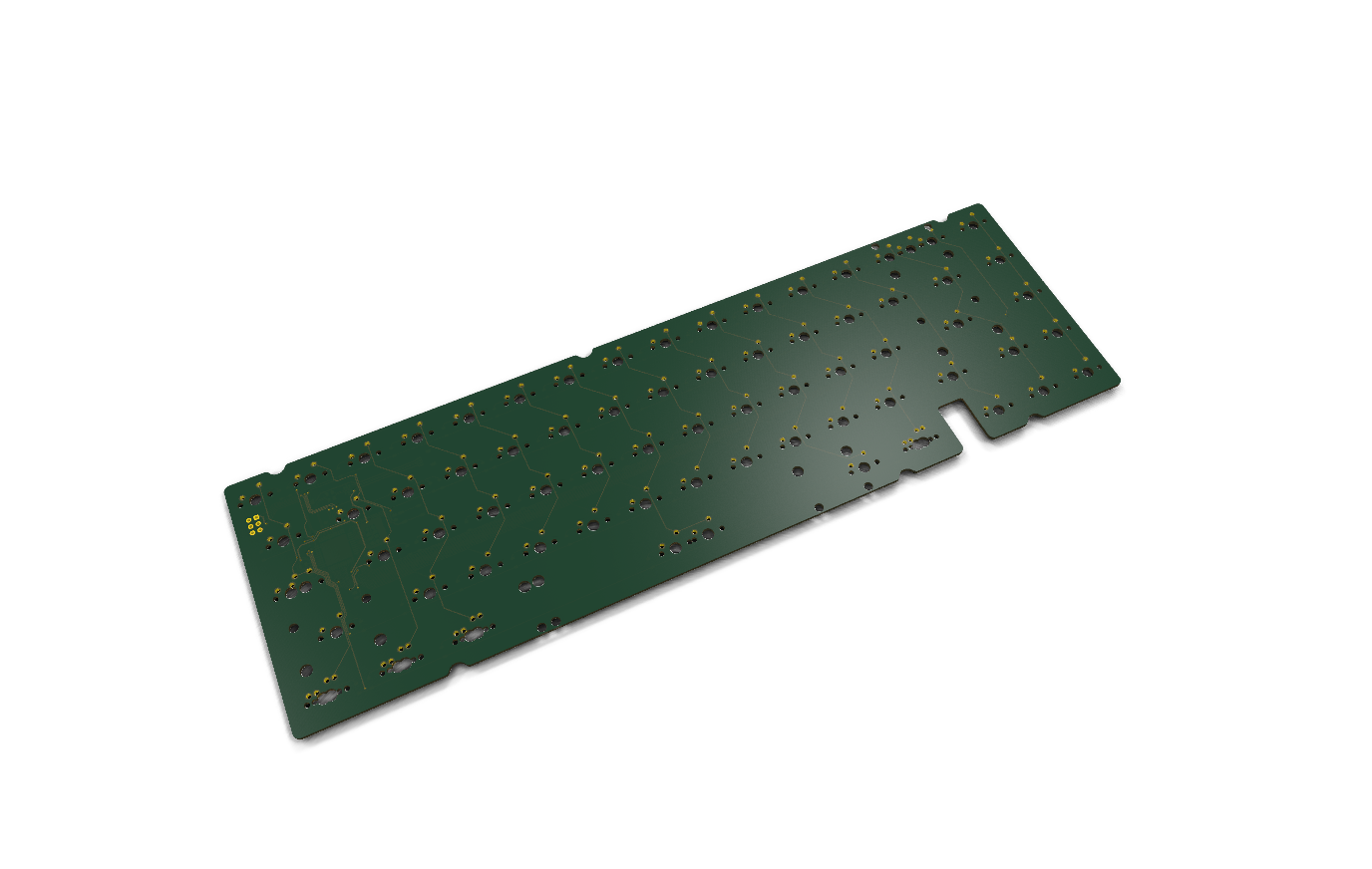

- PCB
- Soldering
- SMD, fine-pitch (IC)
- SMD required
- yes
Licensing
- Hardware
- MIT
- Firmware
- MIT
- Documentation
- MIT
