anavi macro pad 12
12 keys unibody
MX Seeed XIAO socket QMK
anavi-macro-pad-12.kicad_pcb.

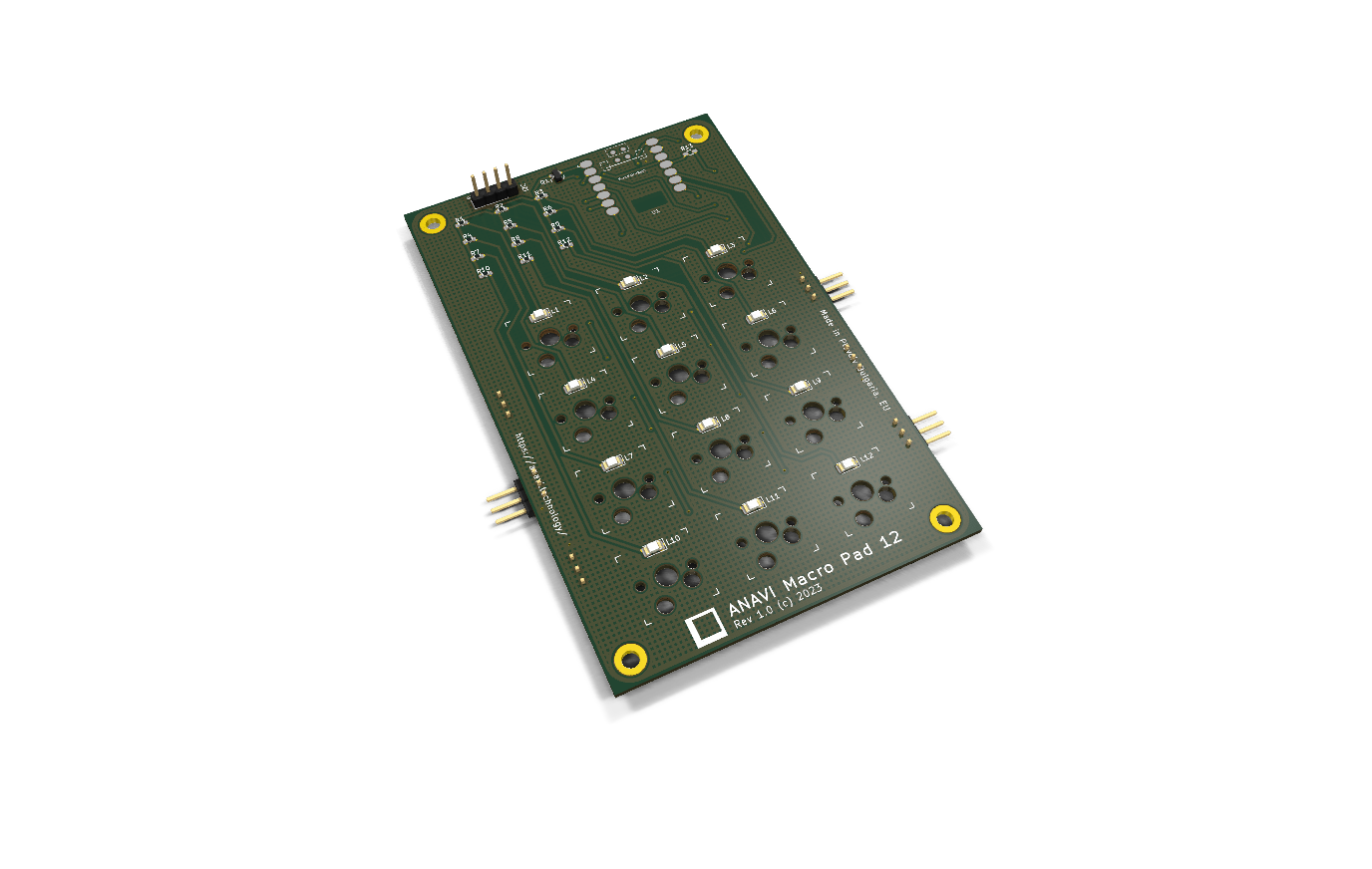

No switches or keycaps: this is the board as manufactured.
What fits this board → Compare with another board →
Record 100% complete · 17 of 17 fields
- ✓ Layout
- ✓ Switch footprint
- ✓ Build method
- ✓ Controller
- ✓ Body
- ✓ Firmware
- ✓ Hardware license
- ✓ Firmware license
- ✓ Documentation license
- ✓ Key pitch
- ✓ Soldering
- ✓ Firmware targets
- ✓ Summary
- ✓ Key wiring
- ✓ Hotswap
- ✓ Splay
- ✓ Stagger
Mini hot-swappable mechanical keyboard with 12 Cherry MX compatible switches, translucent key caps, USB-C, RP2040 microcontroller, mini OLED display, backlighting and under lighting.
Layouts
- 12 keys
Spec
Shape
- Body
- unibody
- Splay
- no
- Stagger
- ortholinear
- Key spacing
- MX spacing · 19.05 × 19.05 mm
Switches
- Switch footprint
- MX
- Hotswap
- Kailh socket, Gateron socket
Electronics
- Controller
- Seeed XIAO socket
- Connectivity
- Wireless with a Seeed XIAO nRF52840 (XIAO BLE) — needs a ZMK config
- USB port
- USB-C, on the dev board
- Firmware
- QMK (anavi/macropad12)
- Firmware targets
- RP2040
- Key wiring
- 4×3 matrix, column-to-row diodes
- Room for
- — not recorded —
- Power switch
- no
- Exposed components
- no
Building it
- Build method
- PCB
- Soldering
- SMD, hand-solderable (diode, IC)
- SMD required
- yes
Licensing
- Hardware
- all rights reserved — no license stated
- Firmware
- all rights reserved — no license stated
- Documentation
- all rights reserved — no license stated
